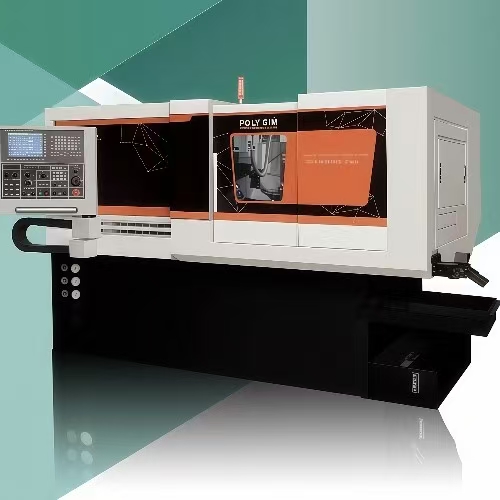

DIAMOND 25/32/42 CSLSeries

下載PDF檔案加入詢價車

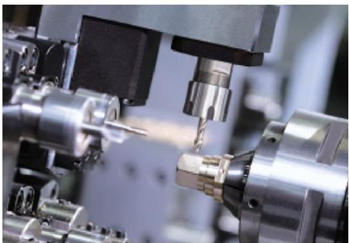

    The side milling spindle is equipped with a drill-milling inclined angle tool holder, which facilitates the execution of drilling, milling and tapping functions on the side of the workpiece and at inclined angles.

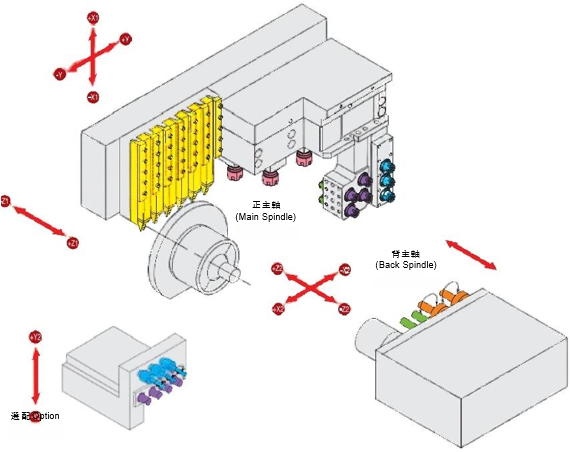

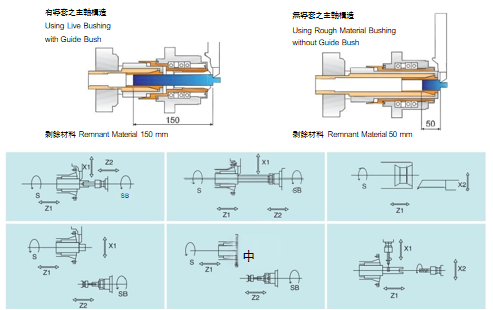

    The cross-shaped approach to the back main shaft design enables the main shaft and the back shaft to be processed simultaneously or separately, saving processing time and providing high-quality and diverse front and rear mixed processing.

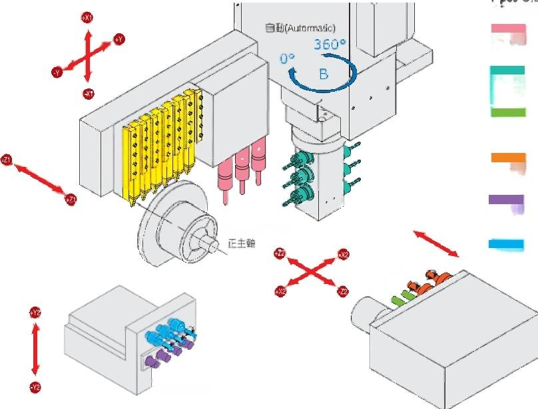

    The B-axis drilling and milling angle tool holder can rotate 360 degrees, facilitating the execution of angled drilling, milling and tapping operations with the main spindle and the back spindle.
特点介紹

換 成Evermore  可 抽 換 式 5 支 側 鑽 ,B軸 可選配3或6支  斜角度鑽銑刀座及3支正面/背面内徑刀具刀座

Change to Evermore removable 5 pcs cross driven tool holder,   B-axis can be optional with 3 or6 bevel driven tool holder and     3 pcs front /back I.D.stationary tool holder.


選配:Y2軸選配7支Evermore 抽換式動力刀座

Option  :Y2  axis  optional  with  Evermore  removable 7pcs  driven  tool  holder



選配:背面選配Y2軸時可加選配立式鑽銑刀具刀座

Option:   Optional  Radial  drilling  tool   holder  when                 Y2 axis is selected on the sub-spindle


● 主 軸 配 内 藏 式 馬 達 , 標 準 配C軸,   可選配高解析的CS軸。

● Main spindle is equipped withbuilt-in motor,and the

standard is equipped with C axis.A high-analytic CS axis                      is optional.

機械特點

MACHINE    FEATURES:

-   側銑主軸加鑽銑斜角度刀座,方便在工件側面及斜角度做    鑽、跣和攻牙等功能。

-   十字型走向背主軸設計,主軸和背軸可以同時或單獨加工    節省加工時間,提供高度及多様的前後混合加工。

- B軸鑽銑斜角度刀座可360度旋轉方便與主軸和背軸做斜角    度鑽,鉄和攻牙等加工。

●Cross spindle and bevel driven tool holes will help you to do drilling,             milling and tapping on cross side and bevel.

● Cross travel sub-spindle design,the main and sub-spindle can work             either one at a time or simultaneously for reduced machining duration.

● This design bring multi-function front and rear machining.

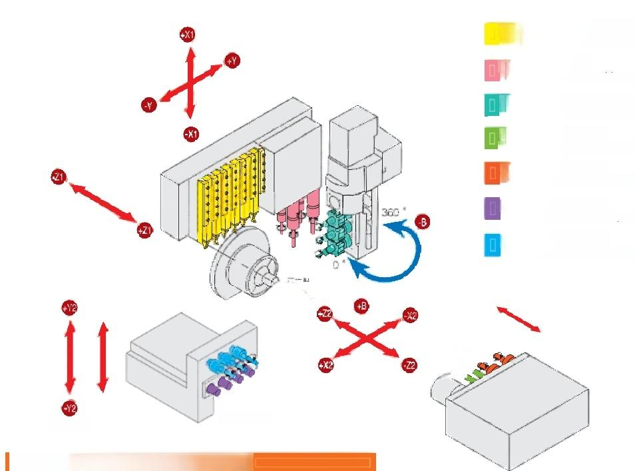

The B-axis bevel driven tool holder can be rotated 360 degrees to

facilitate bevel drilling,milling and tapping with the main and rear spindle.


2支正面内徑刀具刀座

2 pcs I.D stationary tool holder

2支正面鑽銑刀具刀座

2 pcs Front working driven tool holder

k徑I  ta刀tio     ry tool holder

3支背面鑜銑刀具刀座

3 pcs Back working driven tool holder



正面内径刀具刀座.....2~3支   背面内径刀具刀座.....4支  侧面鑽銑刀具刀座

-----6/5支(配Evermore)



◆Controller :Fanuc 0i-TF PLUS/Fanuc 3li-B(Opt.Y2 axis)


◆Main spindle Caxis orientation

◆Back spindle Caxis orientation

◆Working light

◆Coolant system

◆Part off detective sensor

◆Part catcher


◆Live bushing

◆0.D turning tool holder--------5~7pcs

◆Front I.D stationary tool holder-…-2~3pcs

◆Back I.D stationary tol holde-…-…4pcs

◆Cross working driven tool holder

----------6/5pcs(with Evermore)


選擇附件 OPTION ACCESSORIES:

◆ 控制器：三菱 M80/  三菱 M830(選配Y2軸)      ◆ 排屑機+鐵屑車

◆正 面 鑽 銑 刀 具 刀 座 . . . . . 2 支 ◆粗料套筒                   斜角 度 鑽 銑 刀 具 刀 座 . . . . . 3 / 6 / 8 支  Y 2軸

◆ 背面鑽铣刀具刀座------------3/7支(選配Evermore)


◆CS轴(0.0010定位-發那科/0.010定位-三菱---------主軸



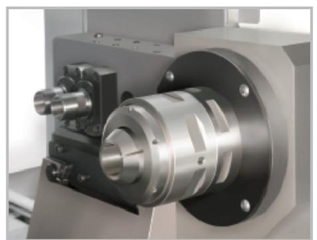

● 背主轴配伺服馬達,標凖是C軸 。

● 背主軸旁邊刀座放置2支固定及2支動力鑽,可前進後  退，適合做深孔加工。

● Sub-spindle is equipped with servo motor,and the standard is

C-axis.

There are 2 fixed and 2 power drills on the tool holder beside the    sub-spindle,which can move forward and backward.It is suitable   for deep hole processing.



◆Controller:Mitsubishi M80/Mitsubishi M830(Opt.Y2 axis)

◆ Front working driven tool holder-                                                                …2pcs         ◆360°b-axis bevel driven tool holder--                                        … ·3/6/8pcs

◆ Back working driven tool holder----------     …3/7 pcs(Opt.Evermore)

◆CS axis(0.001°orientation-Fanuc/0.01°orientation-Mitsubishi)---Main spindle

◆Chip conveyer+Bucket                                                             ◆Y2 Axis

◆Rough material bushing


● 取消B軸配6支斜角度刀具刀座换配端側一體刀座

Cancel the 6  pcs  B-axis  bevel driven tool  holder and

replace a off-center driven tool holder



7支外徑刀具刀座(42型6支)

6支側面鑽銑刀具刀座

4支+3支(42型2支)正面内径刀具刀座4 pcs   3支+2支正面鑽銑刀具刀座

4支+4支背面内徑刀具刀座       3支+3支背面鑽銑刀具刀座


7 pcs O.D Turning tool holder(CSL-42 IV 6pcs)

6 pcs Cross working driven tool holder

+3   pcs   (CSL-42   IV   2pcs)Front    I.D   stationary   tool    holder

3 pcs+2 pcs Front working driven tool holder

4 pcs+4 pcs Back I.D stationary tool holder

3 pcs+3 pcs Back working driven tool holder


◆控制器：發那科0i-TF  PLUS

主軸C軸 定位  工件切斷檢測


◆背主軸C軸定位◆工件收集器


正面内径刀具刀座 · · ·3支(42型2支)

◆ 背面内徑刀具刀座…---------4支


正面/背面内径刀具刀座4/4支  正面/背面鑽銑刀具刀座.....3/3支   側面鑽銑刀具刀座---6或5支(配Evermore)


◆ 控制器：三菱M80                                      ◆ 粗料套筒  正面鑽銑刀具刀座.....2支            Y  2軸

背面鑽銑刀具刀座-------3/7支(選配Evermore)

◆ CS車由C0.0010定位一發那科/0.01定位-三菱)-------主車由

◆排屑機+鐵屑車

◆Controlle:Mitsubishi M80

◆Front working driven tool holder--2pcs

◆ Back working driven tol holder………317pes(Opt.Evermore)

◆ CS axis(0.001°orientation-Fanuc/0.01°orientation-Mitsubishi)


◆Chip conveyer+Bucket

◆Rough material bushing

◆ Y2 Axis


◆同期迴轉套筒


◆ 外徑刀具刀座7支(42型6支)◆


◆Contrller:Fanuc 0i-TF PLUS

◆ Main spindle Caxis orientation ◆0.D turning tool holder…-7pcs(CSL-42IV 6pcs)

◆ Back spindle Caxis orientation   ◆Front LD stationary tool holder---3pcs(CSL-42 IV 2pcs)


◆ Working light

◆Coolant system

◆ Part off detective sensor

◆ Part catcher

◆ Live bushing


◆ Back I.D stationary tol older……………4pcs

◆Front/Back I.D stationary tool holder…-…4/4pcs

◆ Front/Back working driven tool hole.----3pcs

◆ Cross working driven tool holder

---  -------------6 or 5pcs(with Evermore)

7 pcs O.D turning tool holder (CSL-42 IV 6pcs)     7支外徑刀具刀座(42型6支)

6 pcs cross working deiven tool holder                       6支側銑刀具刀座

6 pcs 360°B axis bevel driven tool holder             6支斜角度鑽鉄刀具刀座

3 pcs I.D stationary tool holder(CSL-42 IV 2 pcs) 3支正面内径刀具刀座(42型2支)

2 pcs front off-center driven tool holder                     2支正面鑽銑刀具刀座

4 pcs back I.D stationary tool holder                      4支背面内径刀具刀座

3 pcs back off-center driven tool holder                    3支背面鑽銑刀具刀座




标准配件
    Controller: Mitsubishi
    Spindle C-axis positioning
    Back spindle positioned by 5º
    Work light Cooling system
    Workpiece cutting detection
    Workpiece collector
    Synchronous rotating sleeve
    Outer diameter tool holder - 5 to 7 pieces
    Front inner diameter tool holder - 2 to 3 pieces
    Back inner diameter tool holder - 4 pieces
    Side drilling and milling tool holder - 6/5 pieces (with Evermore)
选择配件
    Controller: Fanuc
    Front face drilling and milling tool holder ---- 2 pieces
    Inclined angle drilling and milling tool holder ---- 3/6/8 pieces
    Backside drilling and milling tool holder ---- 3/7 pieces (with Evermore)
    CS axis (0.001º positioning - Fanuc / 0.01º positioning - Mitsubishi) ---- Spindle
    C-axis positioning ---- Back spindle
    Chip remover + iron屑 conveyor
    Coarse material sleeve
    Y2 axis
产品规格
Project25 CSL32 CSL42 CSL
Processing range
Maximum machining outer diameterØ26mmØ32mmØ42mm
The maximum processing length of a single clamp application250mm250mm250mm
Maximum drilling diameterØ26mmØ26mmØ26mm
The outer diameter of the largest tapM16M16M16
Tool system
Outer diameter tool count (3/6 tools on B axis)665
Outer diameter tool count (8 tools on B axis)776
Outer diameter tool size□16x16x120□16x16x120□16x16x120
(Positive) Number of inner-diameter cutting tools (3/6 on B axis)222
(Positive) Number of inner-diameter cutting tools (8 on B axis)332
Inner diameter tool size13 mm (ER20)13 mm (ER20)13 mm (ER20)
(Backside) Number of internal diameter cutting tools444
Inner diameter tool size13 mm (ER20)13 mm (ER20)13 mm (ER20)
Number of side milling cutters666
Side milling cutter size13 mm (ER20)13 mm (ER20)13 mm (ER20)
Side milling cutter speed200~6000rpm200~6000 r.p.m.200~6000 r.p.m.
(Optional) Number of inclined-angle drilling and milling tools (3/6 available on B-axis)3/63/63/6
(Optional) Number of inclined-angle drilling and milling tools (8 pieces for B-axis)888
Inclined angle drilling and milling tool dimensions (3 pieces for the B axis)13mm (ER20)13mm (ER20)13mm (ER20)
Inclined angle drilling and milling tool speed100~6000rpm100~6000rpm100~6000rpm
(Optional) Number of frontal drilling and milling tools222
Dimensions of the frontal drilling and milling tool13mm (ER20)13mm (ER20)13mm (ER20)
The rotational speed of the frontal drilling cutter200~6000rpm200~6000rpm200~6000rpm
(Number of rear face drilling tools)333
Backside drilling tool dimensions13mm (ER20)13mm (ER20)13mm (ER20)
Backside drilling tool rotational speed100~4000rpm100~4000rpm100~4000rpm
Spindle
Inner diameter of the main shaftØ26mmØ33mmØ42mm
Spindle speed200~7000rpm200~7000rpm200~5000rpm
Spindle positioningC axisC axisC axis
Supporting shaft
Inner diameter of the rear shaftØ25mmØ33mmØ42mm
Back spindle speed200~6000rpm200~6000rpm200~5000rpm
C-axis positioningC axisC axisC axis
Maximum length of the previous discharge output70mm70mm70mm
Backside processing length120mm120mm120mm
The maximum diameter of the hole on the back sideØ16mmØ16mmØ16mm
The outer diameter of the largest counter-screw on the back sideM12M12M12
Fast displacement
X1、Z1、Y1、X2、Z2轴 30 m/min 30 m/min 30 m/min
(Optional) Y2 axis30 m/min 30 m/min 30 m/min
Motor
Spindle motor3.7/5.5kW3.7/5.5kW18.5/30kW
Back shaft motor3.7kW或5.5kW3.7kW或5.5kW3.7kW或5.5kW
Motor for X1, Z1, Y1, X2, Z2 axes1.2kW1.2kW1.2kW
(Optional) Y2, B-axis motor0.75kW0.75kW0.75kW
Side drilling motor2.2kW2.2kW2.2kW
(Optional) Inclined angle drilling and milling motor (with 3 shafts for B axis)1kW1kW1kW
(Optional) Inclined angle drilling and milling motor (6 shafts for B axis)2.2kW2.2kW2.2kW
(Optional) Rear drilling and milling motor0.75kW0.75kW0.75kW
(With Y2 axis option) Rear drilling and milling motor1kW1kW1kW
Cutting oil motor0.75kW x 20.75kW x 20.75kW x 2
Lubricating oil motor4W x 24W x 24W x 2
Mechanical dimensions
Center height of the spindle960mm / 1020mm(電氣箱外掛)960mm / 1020mm(電氣箱外掛)960mm / 1020mm(電氣箱外掛)
Weight (standard)3988 / 4368(選配 Y2)3988 / 4368(選配 Y2)4088 / 4468(選配 Y2)
Weight (of the electrical box outside the enclosure)4550 / 4930(選配 Y2)4550 / 4930(選配 Y2)4650 / 5030(選配 Y2)
Mechanical dimensions (standard)3000x1540x1940 mm3000x1540x1940 mm3000x1540x1940 mm
Mechanical dimensions (outside the electrical box)3220x1800x2005 mm3220x1800x2005 mm3220x1800x2005 mm
Atmospheric pressure
Air pressure5kg/cm5kg/cm5kg/cm
Air volume10L/min10L/min10L/min
