DIAMOND CSL 12-2Y/16-2Y Series

下載PDF檔案加入詢價車
    Bidirectional 360° automatic angle-changing tool holder, which can freely cooperate with the positive and negative spindles to perform processing at any angle. Due to the adoption of the axial processing method, it can simultaneously perform turning and drilling, saving processing time and cost. It is the most suitable for turning high-precision electronic parts.
特点介紹

雙向式360^{circ}          自動選角度刀座,可自由配合正副主軸做任一角度之加工,因採取向 式加工,可同時做旋削及鑽孔,節省加工時間及成本,最適合車削高精密之電子 零件。

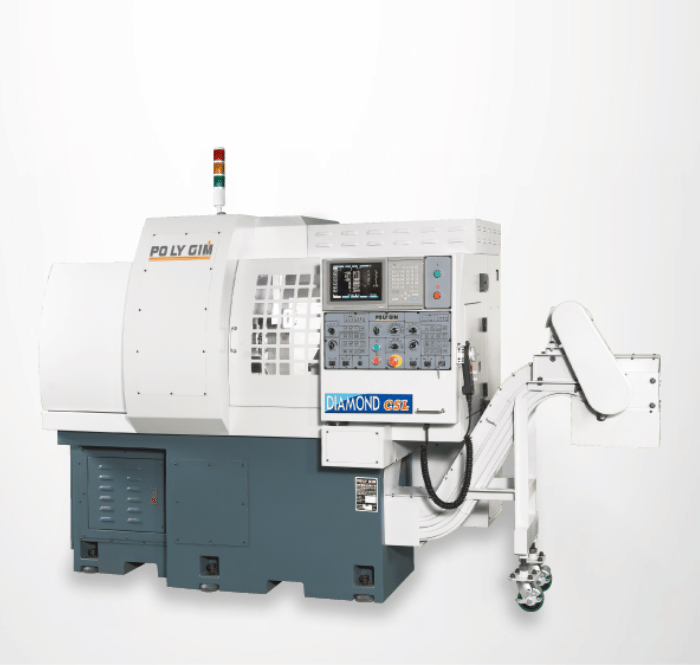

Po Ly Gim introduces the smallest Swiss type CNC lathe:the Diamond CSL 12-2Y.With a 12mm bar     capacity and up to 10 working axes,the compact Diamond CSL 12-2Y doesn't compromise capability     for size.

Among its unique features are two Y-axes and six fully programmable(360 degree)tools that work on     both the main and sub-spindle.The Diamond CSL 12-2Y is suitable for producing small electronics parts   and is mill turn capable.





标准配件
    Main shaft Supporting shaft
    Work lamp Cooling system
    Workpiece cutting detection
    Fixed sleeve
    Workpiece collector
    6 external diameter tool holders
    5 front internal diameter tool holders
    5 rear internal diameter tool holders
选择配件
    5 side milling tool holders
    6 360-degree automatically rotating angle drilling and milling tool holders
    CS axis
    Synchronous rotation sleeve
    Coarse material sleeve (maximum processing length = material outer diameter x 3)
    Chip remover
    Chip bucket
产品规格
ProjectGold Diamond CSL 12-2YGold Diamond CSL 12-2YGold Diamond CSL 16-2YGold Diamond CSL 16-2Y
SystemY1 (System 1)Y2 (System2)Y1 (System 1)Y2 (System2)
Processing range
Maximum machining outer diameterØ12.7 mm
Ø16.5 mm
The maximum processing length of a single clamp application143 mm
143 mm
Maximum drilling diameterØ7 mm
Ø10 mm
The outer diameter of the largest tapM6
M8
Tool system
Number of external diameter cutting tools4242
Outer diameter tool size□10  x10 x 100□10  x10 x 100□10 x 10 x 100□10 x 10 x 100
Number of inner-diameter cutting tools
5
5
Inner diameter tool size
7 mm (ER11)
10 mm (ER16)
Number of side milling cutters5
5
Side milling cutter size7 mm (ER11)
10 mm (ER16)
Side milling cutter speed200~6000 rpm
200~6000 r.p.m.
360-degree rotating power cutting tools
6
6
360-degree rotating power cutting tool size
10 mm (ER16) x3
7 mm (ER11) x3
10 mm (ER16) x3
7 mm (ER11 )x3
360-degree rotation power cutting tool speed
200~6000 r.p.m.
200~6000 r.p.m.
Spindle
Inner diameter of the main shaftØ13 mm
Ø17 mm
Spindle speed200~10,000 r.p.m.
200~10,000 r.p.m.
Supporting shaft
Inner diameter of the rear shaft
Ø13 mm
Ø17 mm
Back spindle speed
200~10,000 r.p.m.
200~10,000 r.p.m.
Maximum drilling diameter for the back processing
Ø7 mm
Ø10 mm
Maximum thread diameter for rear processing
M6
M8
Fast displacement
Axis A
30m/min
30 m/min
X1, Z1 axis30m/min
30 m/min
Y1 axis30 m/min
30 m/min
X2, Y2, Z2 axes
30m/min
30 m/min
Motor
Spindle motor2.2 kW
2.2 kW
Back shaft motor
2.2 kW
2.2 kW
Y1 and Y2 axis motors1.0 kW1.0 kW1.0 kW1.0 kW
A, X1, Z1, X2, Z2 axis motors1.0 kW1.0 kW1.0 kW1.0 kW
B axis
1.0 kW
1.0 kW
Side milling axis / B-axis side milling1.0 kW1.0 kW1.0 kW1.0 kW
Cutting pump motor1 HP
1 HP
Lubricating oil motor25 W
25 W
Mechanical dimensions
Center height of the spindle1050 mm
1050 mm
Weight2580 kg
2680 kg
Mechanical dimensions2500 x 1200 x 1800 mm
2500 x 1200 x 1800 mm
Atmospheric pressure
Vacuum pressure5kg/cm
5kg/cm
Air volume10L/min
10 L / min
* 我们保留更改设计的权利，恕不另行通知。
