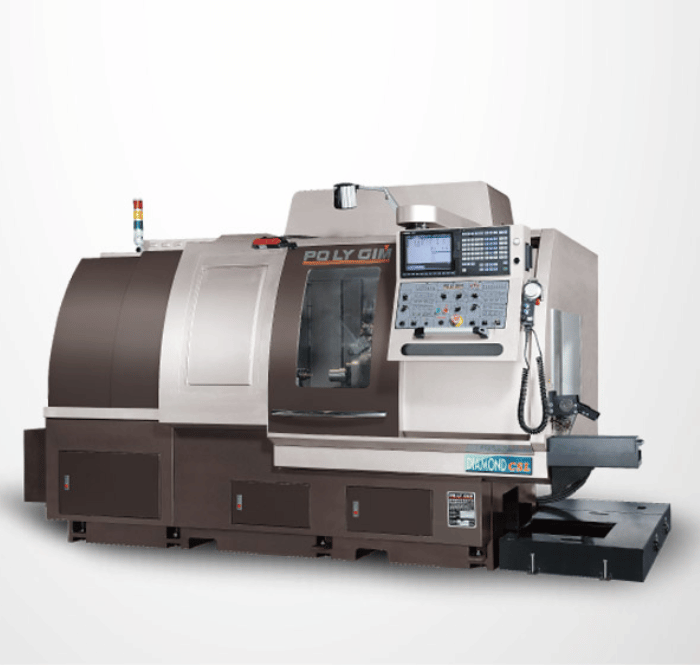

DIAMOND CSL 42-2Y II

下載PDF檔案加入詢價車
    The main spindle and the secondary spindle are up to 42 millimeters in diameter, equipped with a 12-position power tool turret. Both internal main spindles are equipped with CS spindle indexing. This helps to achieve high precision of spindle rotation and better surface finish during the cutting operation.
特点介紹



Main and Sub-Spindle are up to 42mm with

12  station  power  turret.Both  built-in  spindle  are  with  MP

Scale's  CS  axis  construction.This  helps  to  obtain  higher

spindle  rotation accuracy and  better surface finish during

cutting   operation.

主軸和副主軸高達42毫米，配有12個工位的動力轉塔。

内置主軸均採用MP Scale的 CS軸結構。這有助於獲得

更高的主軸旋轉精度和更好的切削操作表面光潔度。


工件收集器配成品輸送帶

Parts Catcher with Parts Conveyor


主軸和背軸使用液壓缸夾持

Main and sub-spindle use hydraulic   cylinder clamping


4 pcs Cross Working Driven  Tool Holder

4支側鉄刀具刀座

4 pcs Back Working Driven  Tool Holder(for 42-2YⅡ)

4支背面鑽鉄刀具刀座

(只限42-2YⅡ)


标准配件
    Main shaft Supporting shaft
    CS axis Work lamp
    Cooling system
    Workpiece cutting detection
    Concurrent rotating sleeve
    Iron filings machine
    Iron filings bucket
    Workpiece collector
    5 outer diameter tool holders
    4 side milling tool holders
    4 double-sided outer diameter tool holders (tool tower)
    4 double-hole inner diameter tool holders (tool tower)
    2 axial power tool holders (tool tower)
    2 double-headed radial power tool holders (tool tower)
    Coarse material sleeve (maximum processing length = material outer diameter x 3)
    4 back drilling and milling tool holders
选择配件
    Bilateral external cutting tool holder (tool tower)
    Double-hole internal cutting tool holder (tool tower)
    Axial power cutting tool holder (tool tower)
    Double-head radial power cutting tool holder (tool tower)
产品规格
ProjectY1 (System 1)Y2 (System 2)(System 3)
Processing range
Maximum machining outer diameterØ42 mmØ42 mm
Maximum processing length280 mm

Maximum drilling diameterØ30 mmØ30 mm
The outer diameter of the largest tapM16M16
Tool system
Number of external diameter cutting tools5

Outer diameter tool size□20x20x120

Number of side milling cutters4

Side milling cutter size16 mm (ER25)

Side milling cutter speed200~6000 rpm

Number of internal diameter cutting tools on the back side

4
Backside inner diameter tool size

Ø25 mm
Number of rear drilling cutters

4
Backside drilling tool dimensions

16 mm (ER25)
Backside drilling tool rotational speed

200~6000 r.p.m.
Power Tower
Number of turret tools
12
Outer diameter tool size
□20 x 20
Inner diameter tool size
Ø25 mm
Maximum number of external diameter cutting tools
6
Number of inner-diameter cutting tools (maximum)
6
Power cutting tool size
16 mm (ER25)
Power cutting tool speed
200~4000 rpm
Number of radial power cutting tools (maximum)
12
Number of axial power cutting tools (maximum)
12
Spindle
Inner diameter of the main shaftØ42 mm

Spindle speed200~6000 rpm

Supporting shaft
Inner diameter of the rear shaft

Ø42mm
Back spindle speed

200~6000rpm
Maximum length of the previous discharge output

120 mm
Maximum drilling diameter for the back processing

Ø30 mm
Maximum thread diameter for rear processing

M16
Fast displacement
X1, Z1, Y1, X2, Z2, Y2, X3, Z3 axes30m/min30m/min30m/min
Itinerary
X1 axis45 mm

Z1 axis300 mm

Y1 axis360 mm

X2 axis
140 mm
Z2 axis
470 mm
Y2 axis
170 mm
X3 axis

245 mm
Z3 axis

450 mm
Motor
Main / Spindle Motor7.5 kW
7.5 kW
Y1 and Y2 axis motors1.5kW2.2kW
X1, Z1, X2, Z2, X3, Z3 axis motors1.0 kW1.0 kW1.0 kW
Power cutting tool motor2.2 kW2.2 kW2.2 kW
Cutting motor1 HP
1 HP
Lubricating oil motor25 W
25 W
Mechanical dimensions
Center height of the spindle990 mm

Weight6480 kgs

Mechanical dimensions3600 x 2650 x 2130 mm

Atmospheric pressure
Air pressure5kg/cm

Air volume10L/min

* 我们保留更改设计的权利，恕不另行通知。
