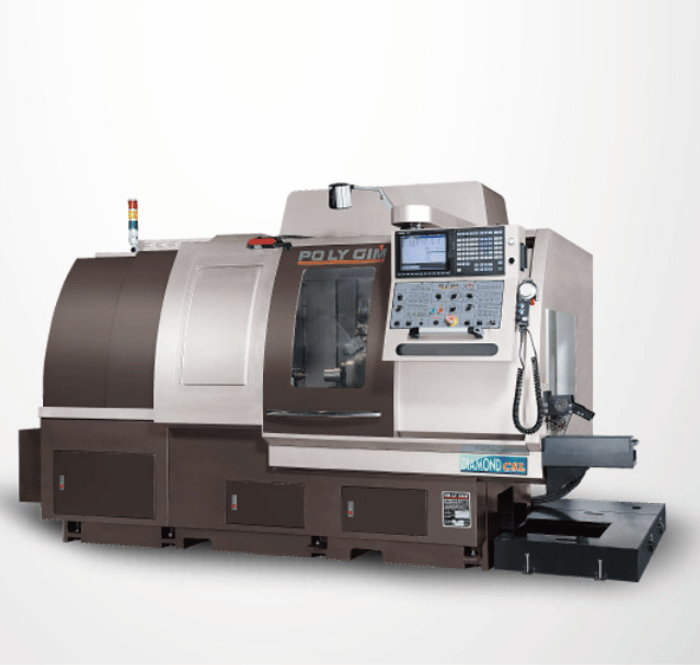

The Gold Diamond CSL 42-2Y is equipped with the most advanced multi-axis control system, which enables it to offer complex manufacturing capabilities up to 9 axes.
Main shaft structure with a guide sleeve
Main shaft structure without a guide sleeve
The 12-jaw power turret can perform double-sided processing.
4 side milling cutter tool holders
5 external diameter tool holders
| Project | Y1 (System 1) | Y2 (System 2) |
|---|---|---|
| Processing range | ||
| Maximum machining outer diameter | Ø42 mm | Ø42 mm |
| Maximum processing length | 280 mm | |
| Maximum drilling diameter | Ø30 mm | Ø30 mm |
| The outer diameter of the largest tap | M16 | M16 |
| Tool system | ||
| Number of external diameter cutting tools | 5 | |
| Outer diameter tool size | □20x20x120 | |
| Number of side milling cutters | 4 | |
| Side milling cutter size | 16 mm (ER25) | |
| Side milling cutter speed | 200~6000 rpm | |
| Power Tower | ||
| Number of turret tools | 12 | |
| Outer diameter tool size | □20 x 20 | |
| Inner diameter tool size | Ø25 mm | |
| Maximum number of external diameter cutting tools | 6 | |
| Number of inner-diameter cutting tools (maximum) | 6 | |
| Power cutting tool size | 16 mm (ER25) | |
| Power cutting tool speed | 200~4000 rpm | |
| Number of radial power cutting tools (maximum) | 12 | |
| Number of axial power cutting tools (maximum) | 12 | |
| Spindle | ||
| Inner diameter of the main shaft | Ø42 mm | |
| Spindle speed | 200~6000 rpm | |
| Supporting shaft | ||
| Inner diameter of the rear shaft | Ø42mm | |
| Back spindle speed | 200~6000rpm | |
| Maximum length of the previous discharge output | 120 mm | |
| Maximum drilling diameter for the back processing | Ø30 mm | |
| Maximum thread diameter for rear processing | M16 | |
| Fast displacement | ||
| A Axis | 30m/min | |
| X1, Z1, Y1 Axis | 30m/min | |
| X2, Z2, Y2 Axis | 30m/min | |
| Itinerary | ||
| A Axis | 460 mm | |
| X1 Axis | 45 mm | |
| Z1 Axis | 300 mm | |
| Y1 Axis | 360 mm | |
| X2 Axis | 140 mm | |
| Z2 Axis | 470 mm | |
| Y2 Axis | 170 mm | |
| Motor | ||
| Spindle motor | 7.5 kW | |
| Back shaft motor | 7.5kW | |
| Y1 and Y2 axis motors | 1.5kW | 2.2kW |
| A, X1, Z1, X2, Z2 axis motors | 1.0 kW | 1.0 kW |
| Power cutting tool motor | 2.2 kW | 2.2 kW |
| Cutting motor | 1 HP | 1 HP |
| Lubricating oil motor | 25 W | 25 W |
| Mechanical dimensions | ||
| Center height of the spindle | 960 mm | |
| Weight | 6380 kgs | |
| Mechanical dimensions | 3000 x 1800 x 1980 mm | |
| Atmospheric pressure | ||
| Air pressure | 5kg/cm | |
| Air volume | 10L/min | |
