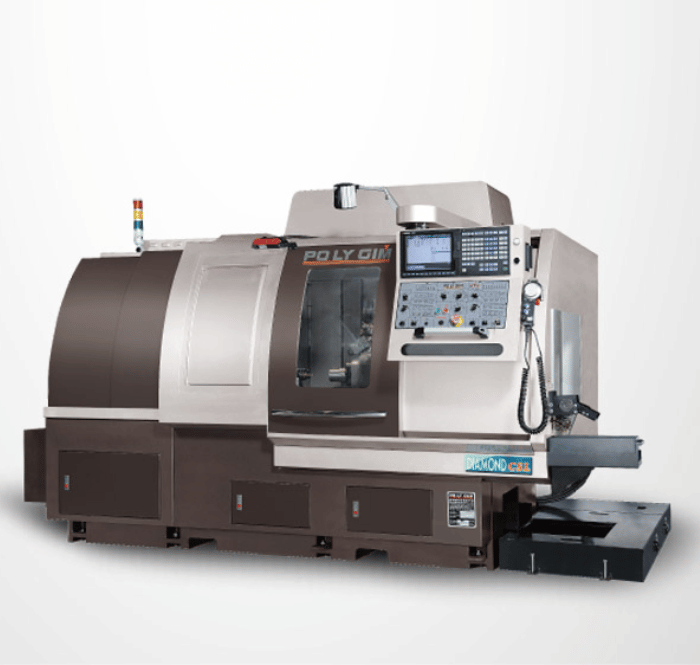

Diamond CSL 42-2Y II

42-2Y II

E-CatalogInquiry
    Main and Sub-Spindle are up to 42mm with12 stations power turret. Both built-in spindle are with CS axis indexing. This helps to obtain spindle rotation high accuracy and better surface finish during cutting operation.
Introduction

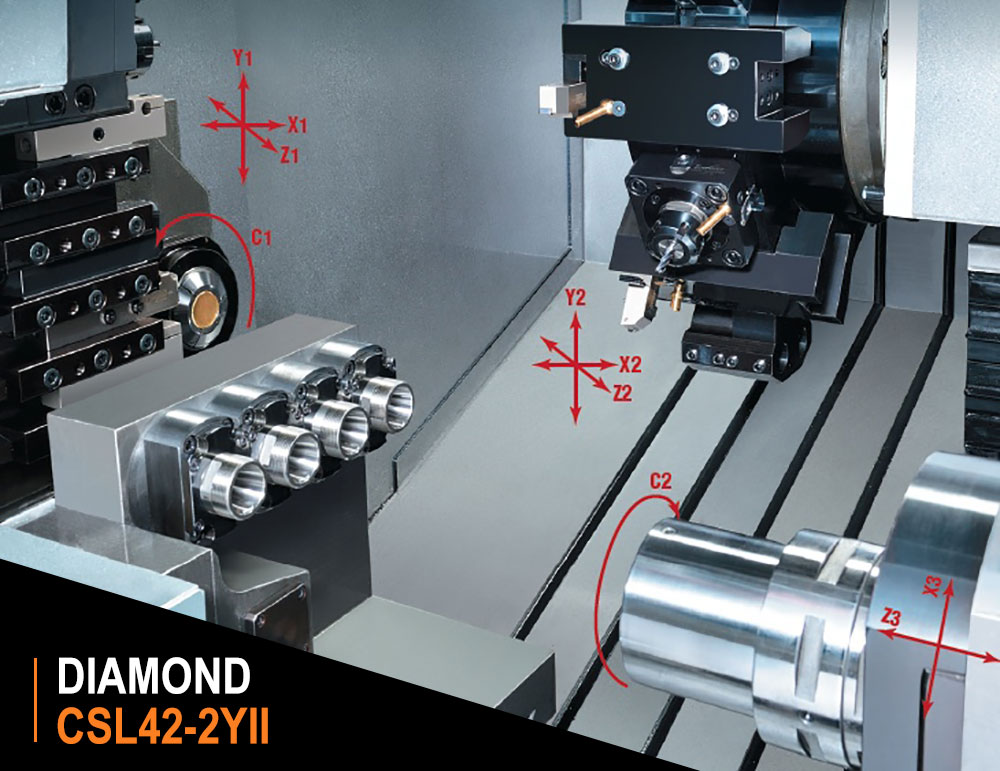

Diamond CSL 42-2YII is upgraded with MITSUBISHI 830 controller which possessed control axis superimposition function. It offers up to 10 axes complex manufacturing capability and it can simultaneously to process at 3 channels.

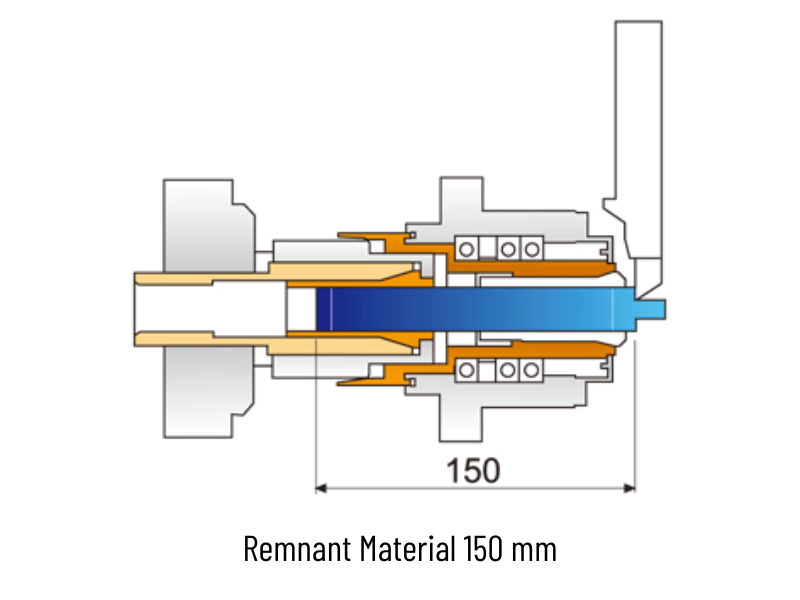

Using Live Bushing with Guide Bush

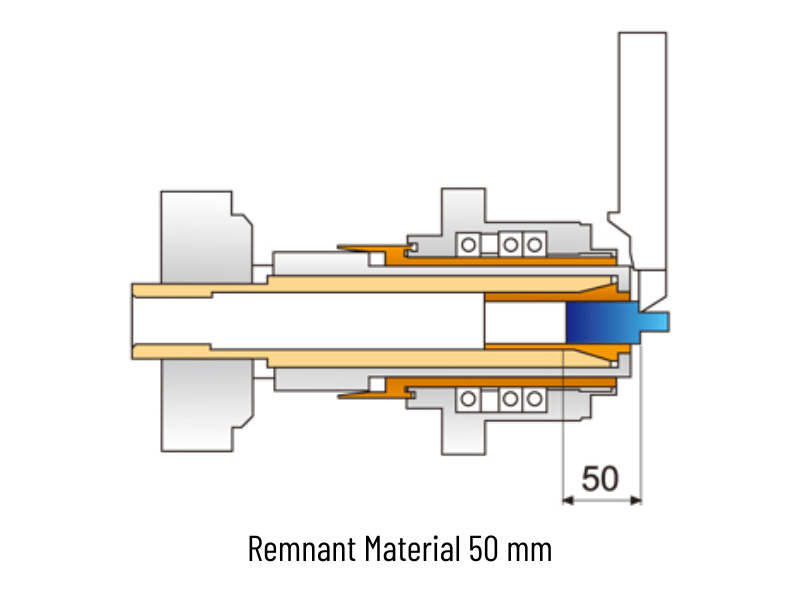

Using Rough Material Bushing without Guide Bush

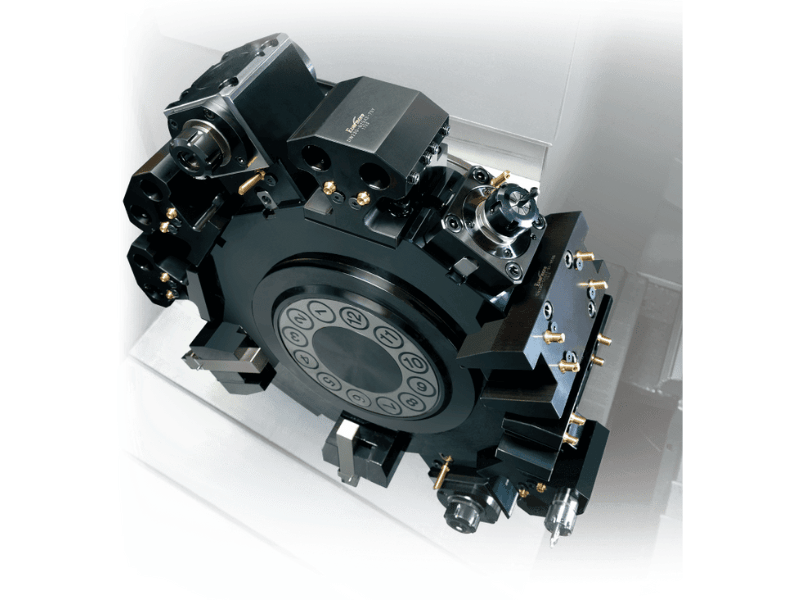

12 Stations Power Turret Can Do Double-side Processing

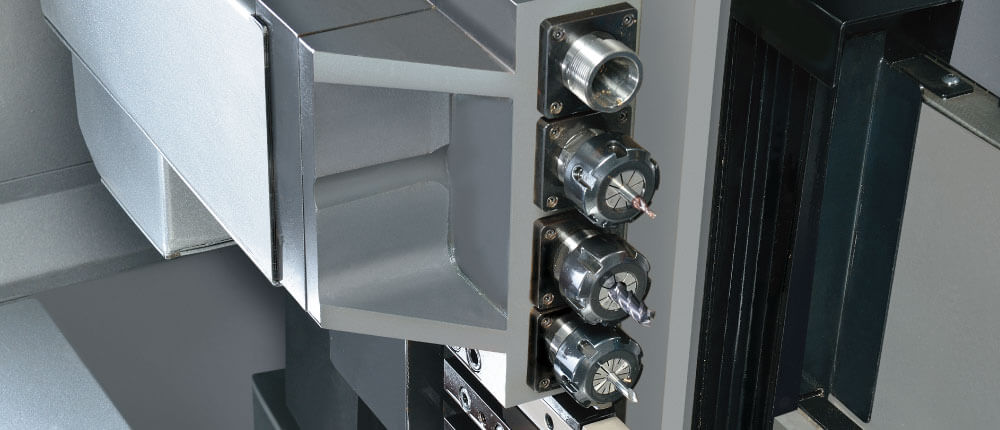

4 pcs Cross Working Driven Tool Holder

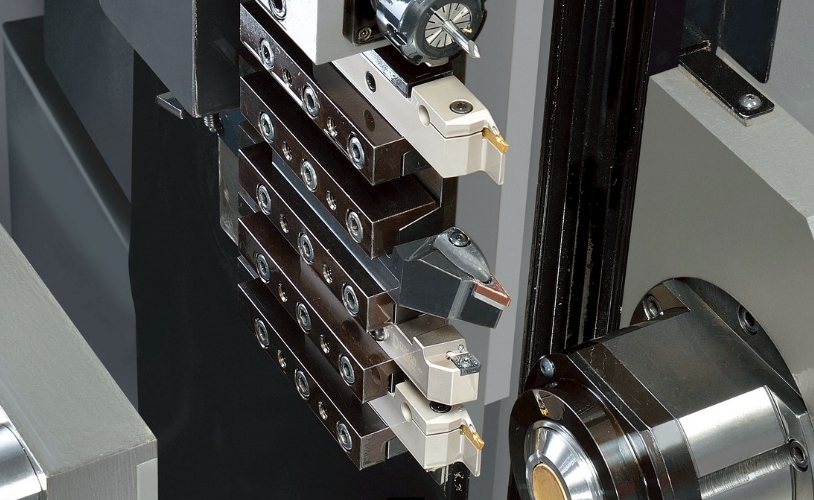

5 pcs O.D. Turning Tool Holder

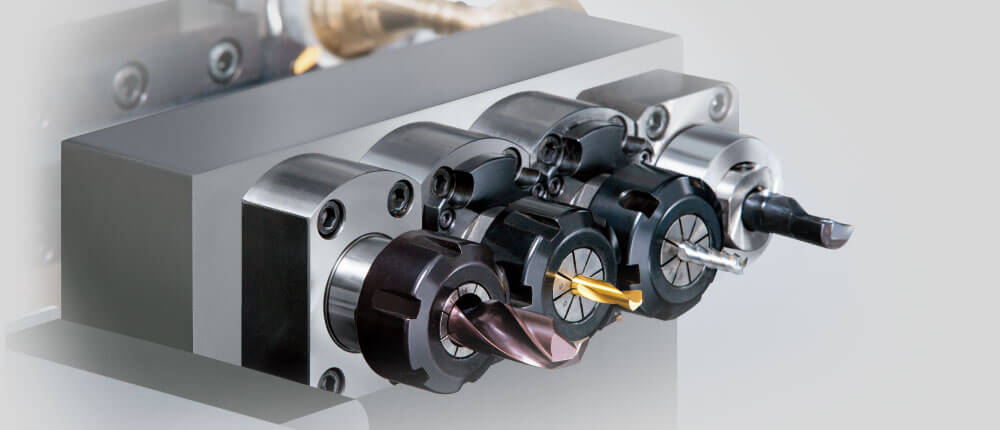

4 pcs Back Working Driven Tool Holder

Standard Accessories
    Main spindle
    Sub-spindle
    CS Axis
    Working Light
    Coolant System
    Part off Detective Sensor
    Live Bushing
    Chip Conveyer
    Chip Bucket
    Part Catcher
    5 pcs O.D. Turning Tool Holder
    4 pcs Cross Working Driven Tool Holder
    4 pcs Double Side Turning Holder (Turret)
    4 pcs Double Boring Bar Holder (Turret)
    2 pcs Axial Drilling and Milling Head (Turret)
    2 pcs Radial Drilling and Milling Double Head (Turret)
    4 pcs Back Working DrivenTool Holder
    Rough Material Bushing(Max. Machining = Bar Diameter x 3)
Optional Accessories
    Double Side Turning Holder (Turret)
    Double Boring Bar Holder (Turret)
    Axial Drilling And Milling Head (Turret)
    Radial Drilling And Milling Double Head (Turret)
Specification
ItemsY1 (System 1)Y2 (System 2)(System 3)
Working Range
Max. Turning Dia.Ø42 mmØ42 mm
Max. Machining Length280 mm

Max. Drilling CapacityØ30 mmØ30 mm
Max. Tapping CapacityM16M16
Tooling System
O.D. Turning Tool5

O.D. Turning Tool Dimension□20x20x120

Cross Tool (power – driven tool)4

Cross Tool Dimension16 mm (ER25)

Cross Tool Speed200~6000 rpm

Back I.D. Tool

4
Back I.D. Tool Dimension

Ø25 mm
Back Working Driven Tool

4
Back Working Driven Tool Dimension

16 mm (ER25)
Back Working Driven Tool Speed

200~6000 r.p.m.
Power Turret
Power - driven Tool / Station
12
O.D. Tool Dimension
□20 x 20
I.D. Tool Dimension
Ø25 mm
Max. O.D. Turning Tool / Station
6
Max. I.D. bore Tool / Station
6
Power – driven Tool Dimension
16 mm (ER25)
Power – driven Tool Speed
200~4000 rpm
Max. Radial Mill / Drill Tool / Station
12
Max. Axial Mill / Drill Tool / Station
12
Spindle
Spindle Hole Dia.Ø42 mm

Spindle Speed200~6000 rpm

Sub-spindle
Sub-spindle Hole Dia.

Ø42mm
Sub-spindle Speed

200~6000rpm
Max. Length for Front Ejection

120 mm
Sub-spindle Max. Drilling Dia.

Ø30 mm
Sub-spindle Max. Tapping Dia.

M16
Rapid Traverse Speed
X1, Z1, Y1, X2, Z2, Y2, X3, Z3 Axes30 m/min30m/min30 m/min
Travel
X1 axis45 mm

Z1 axis300 mm

Y1 axis360 mm

X2 axis
140 mm
Z2 axis
470 mm
Y2 axis
170 mm
X3 Axis

245 mm
Z3 Axis

450 mm
Motors
Main / Sub-Spindle7.5 kW
7.5 kW
Y1, Y2 axes1.5kW2.2kW
X1, Z1, X2, Z2, X3, Z3 Axes1.0 kW1.0 kW1.0 kW
Rotary Tools2.2 kW2.2 kW2.2 kW
Coolant Pump1 HP
1 HP
Lubrication25 W
25 W
Machine Dimensions
Center Height990 mm

Weight6480 kgs

Dimension3600 x 2650 x 2130 mm

Air
Air Pressure5kg/cm

Air Supply10L/min

We reserve the rights to change the design without any prior notification.
