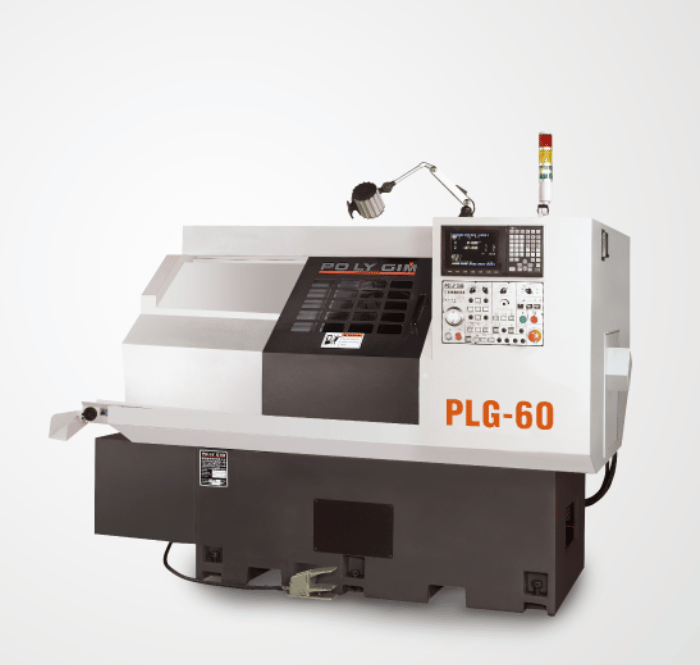

PLG-42/42L/52/60/75 Series

PLG-42/42L/52/60/75

下載PDF檔案加入詢價車
    PLG-42: Optional : 8-station turret, offer flexible operation | Parts catcher offers automation operation | Gang type tool makes tool change easily | Wid chip conveyor makes chip removal easily

    PLG-42L: Power tool holder can operate multilateral parts

    PLG-52/60/75: Parts Conveyor | Chip Conveyor | Tailstock (Programmable quill with stroke 100mm and MT4 taper)
特点介紹

Introducing our premier Turning Lathe Machines, designed for both speed and precision. Our lineup includes models like PLG-42/42L/52/60, all engineered to meet diverse manufacturing needs. With state-of-the-art control systems and versatile functionality, these machines excel in a variety of applications. Whether it's heavy-duty turning or intricate detailing, you can count on our Turning Lathe Machines for reliable, top-notch performance.

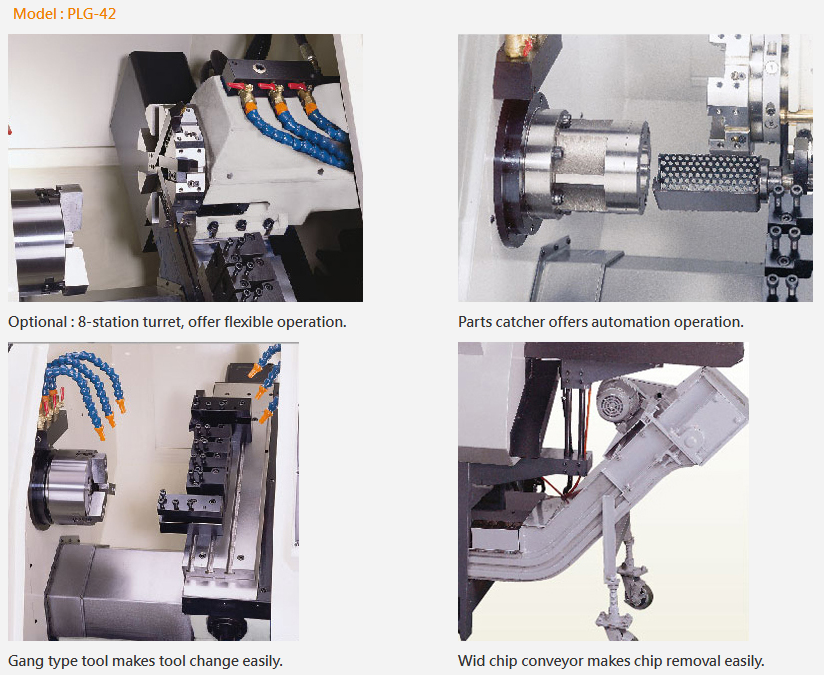

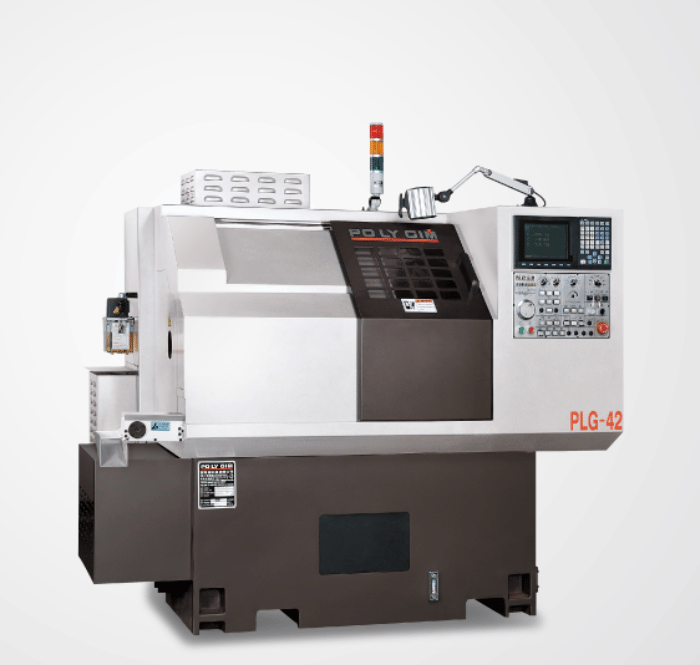

Model: PLG-42

Optional : 8-station turret, offer flexible operation.
Parts catcher offers automation operation.
Gang type tool makes tool change easily.
Wid chip conveyor makes chip removal easily.

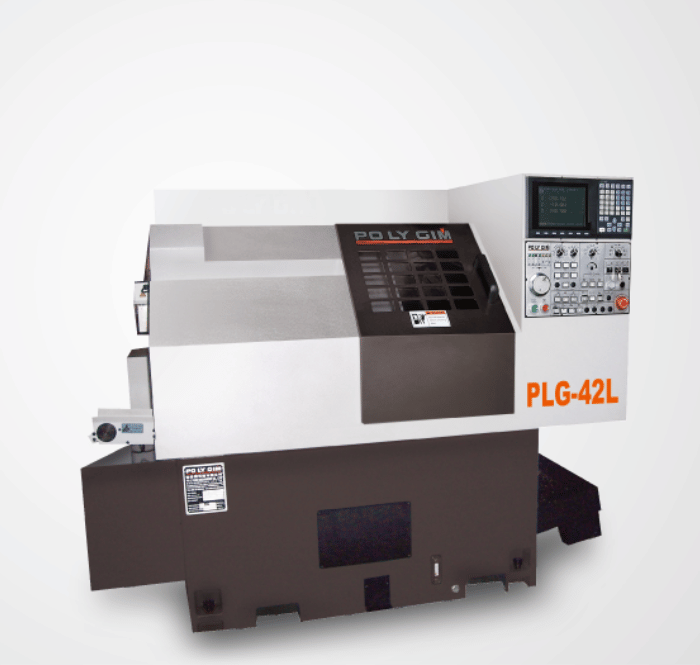

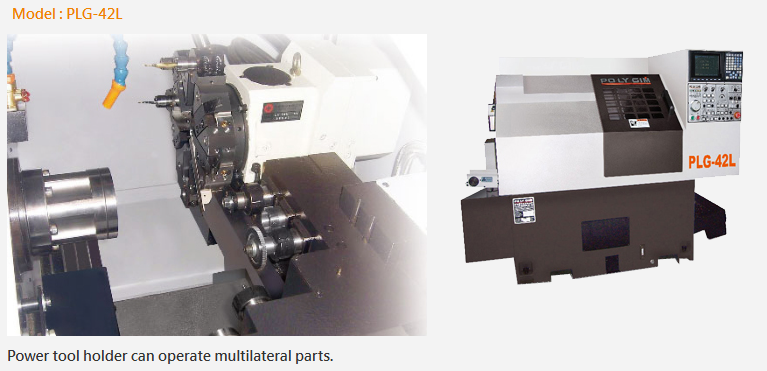

Mdel: PLG-42L

Power tool holder can operate multilateral parts.

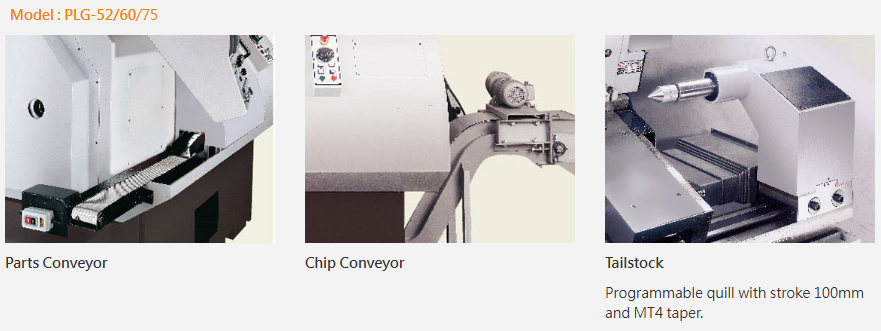

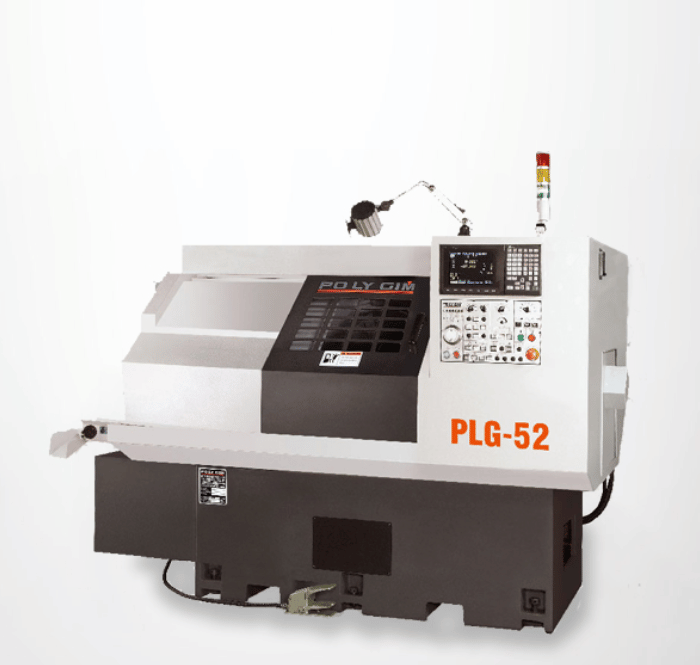

Model : PLG-52/60/75

Parts Conveyor
Chip Conveyor
Tailstock (Programmable quill with stroke 100mm and MT4 taper.)

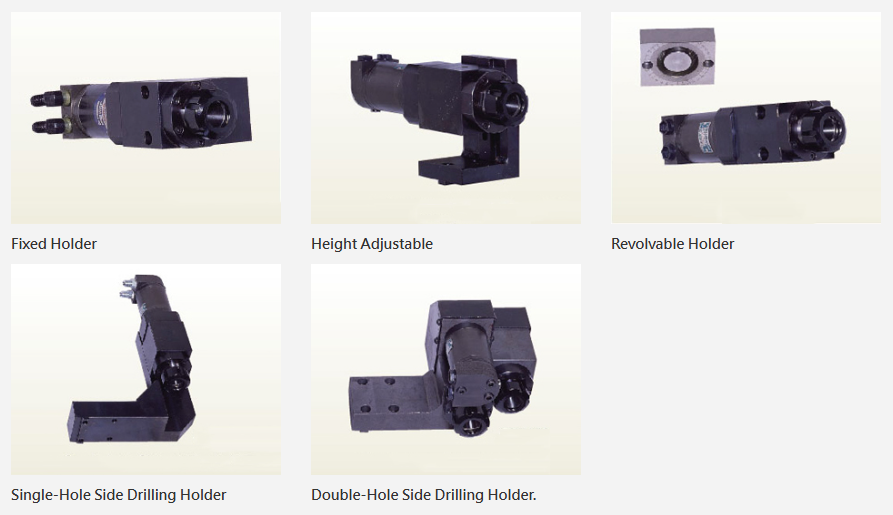

Power Tools Series

Any of hydraulic parts below is optional accessory to satisfy users' every option.

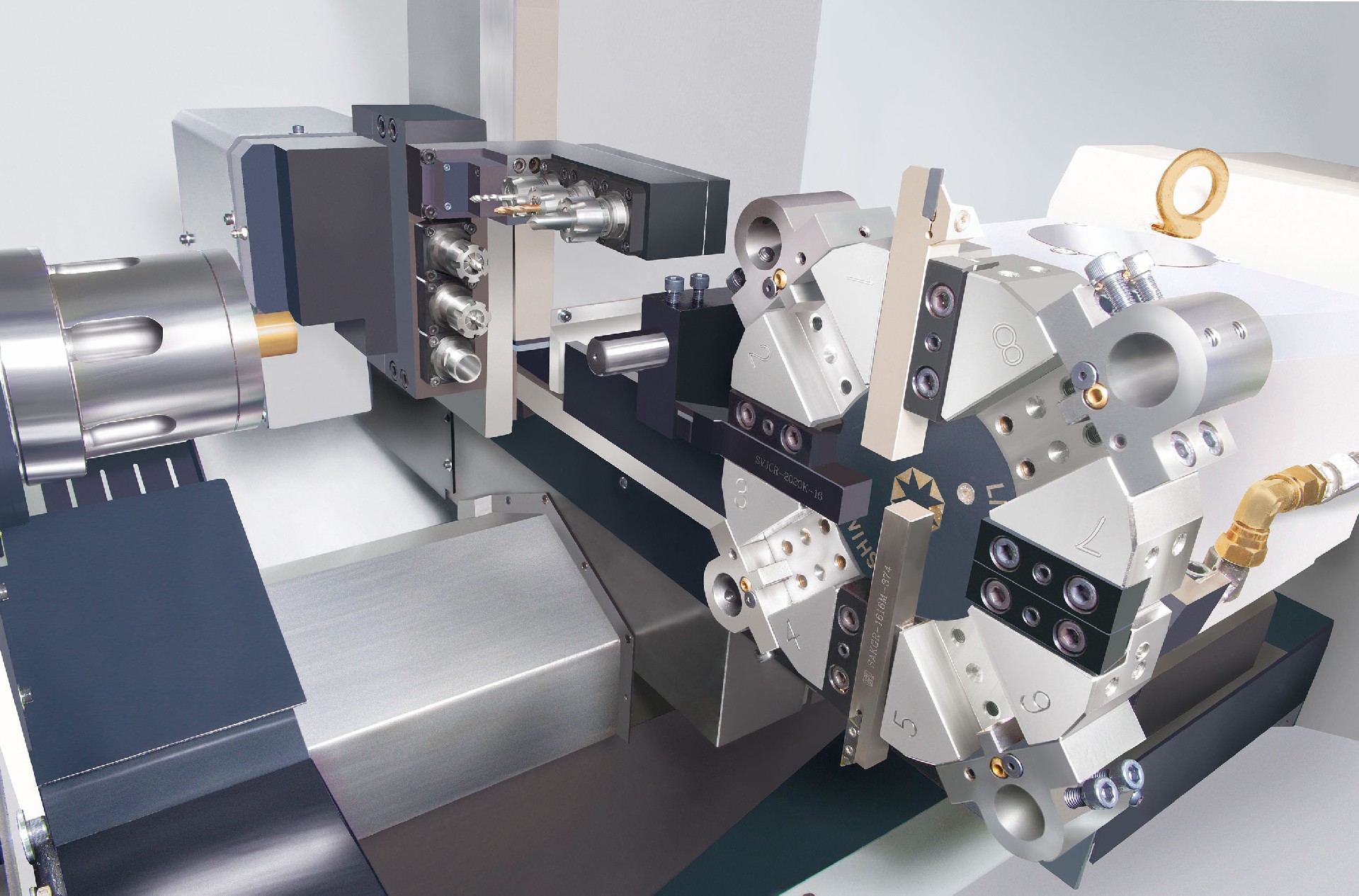

PLG-42L with Y axis and 4 pcs cross driven tool holder

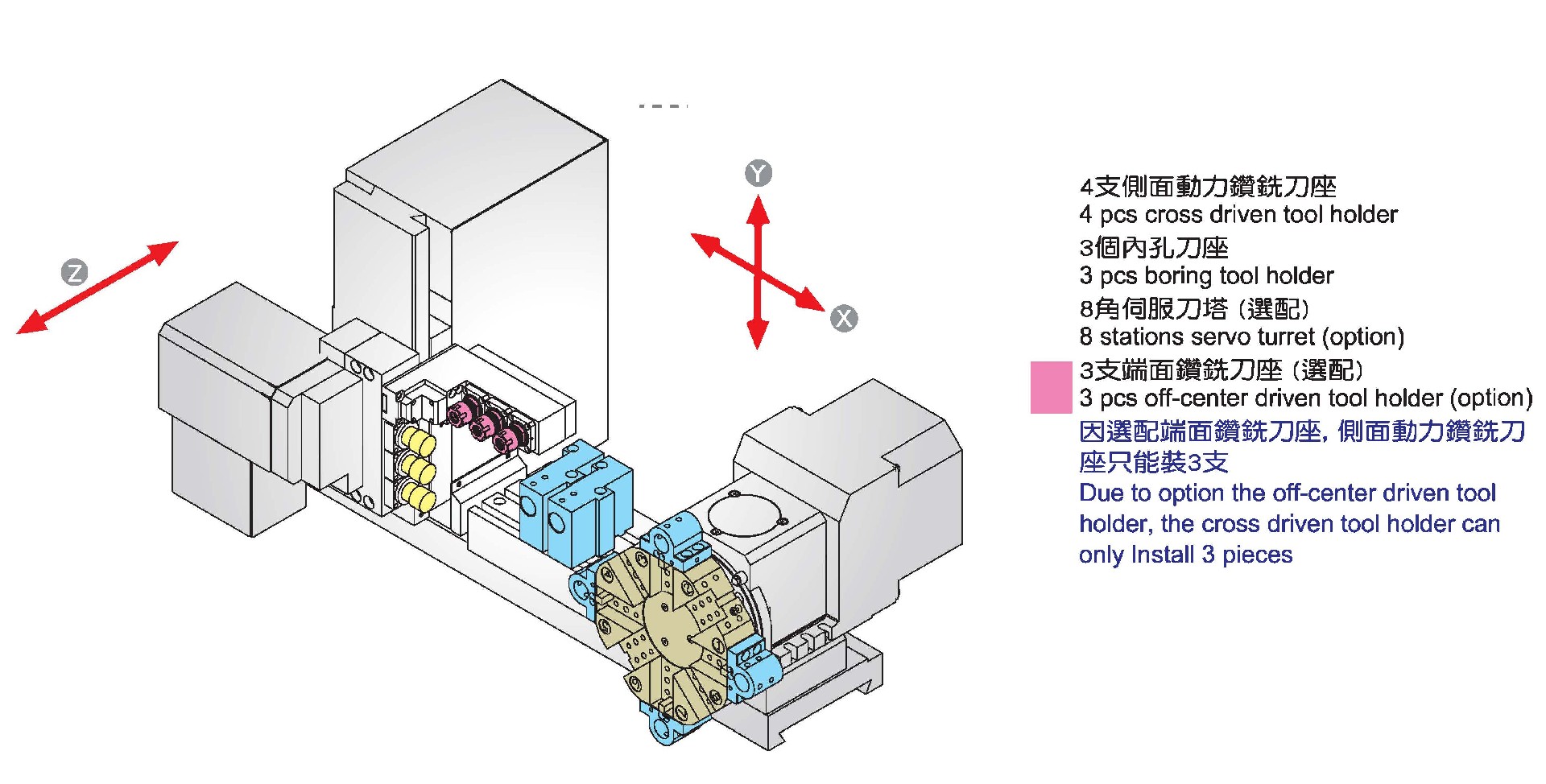

Tool configuration A

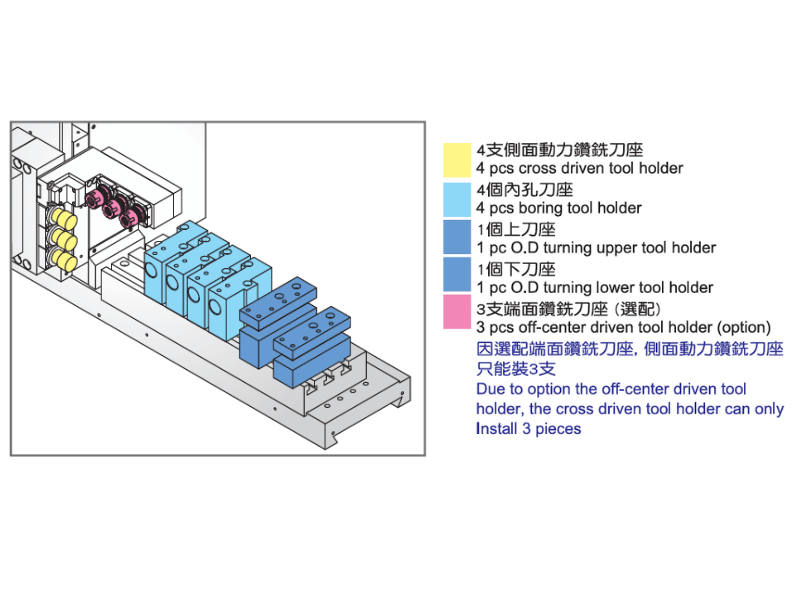

Tool configuration B

标准配件
    Controller : Mitsubishi (1 set)
    3-jaw hydraulic chuck (1 pc)
    Foot chuck switch (1 pc)
    Working Light (1 pc)
    Tools & tool box (1 set)
    Coolant system (1 set)
    Gang type tool disc (1 pc)
    Leveling bolts and pads 6 pcs (type 42 with 4 pcs)
    Boring tool holder (3 pcs)
    O.D turning upper and lower tool holders (4 pcs)
    Tool holder bushing: PLG-42(2 pcs/ea) ( 8mm, 10mm, 12mm, 16mm, 20mm)
    Tool holder bushing: PLG-52/60/75(2 pcs/ea) (8mm, 10mm, 12mm, 16mm, 20mm, 25mm)
选择配件
    PLG-42/52/60/75: 8-stations hydraulic turret, Chip conveyer+Bucket, Part catcher or Part conveyor, Tail-stock (movement is manual )
    PLG-42L: 8-position servo turret, 2 pcs radial drilling tool holder, 3 pcs axial drilling tool holder, Parts conveyor, Chip conveyor+Bucket
产品规格
ItemsPLG-42PLG-42LPLG-52PLG-60PLG-75
Max. machining dia. (with 3 jaws chuck)Ø130 mmØ130 mmØ300 mmØ380 mmØ380 mm
Max. machining lengthBar diameter x 3Bar diameter x 3Bar diameter x 3Bar diameter x 3Bar diameter x 3
(with tail-stock) -Gang Type220 mm220 mm480 mm480 mm480 mm
(Opt. Turret)160 mm160 mm420 mm400 mm400 mm
Swing160 mm160 mm200 mm200 mm200 mm
X Axis Travel230 mm300 mm310 mm310 mm300 mm
Z Axis Travel250 mm250 mm520 mm520 mm520 mm
(Opt. Radial Power Tools)-190 mm---
Spindle Hole55 mm55 mm60 mm85 mm85 mm
Bar Capacity42 mm42 mm52 mm60 mm75 mm
Spindle NoseA2-5A2-5A2-6A2-6A2-8
Spindle Chuck6"6"8"10"10"
Spindle Motor5.5kW/7.5HP5.5kW/7.5HP7.5kW/10HP11kW/15HP11kW/15HP
X axis Motor1kW1kW1.5kW1.5kW1.5kW
Z axis Motor1kW1kW1kW1kW1kW
Axial / Radial Power Tools Motor (Opt.)-4kW4kW4kW4kW
Driven Tools Motor for Power Turret2.2kW/3HP2.2kW/3HP3.7kW/5HP3.7kW/5HP3.7kW/5HP
Spindle Speed100-6000 r.p.m.100-6000 r.p.m.100-4000 r.p.m.100-3500 r.p.m.100-3000 r.p.m.
Rapid traverse (X, Z axes)16 m/min16 m/min12 m/min12 m/min12 m/min
Min. Input Unit0.001 mm0.001 mm0.001 mm0.001 mm0.001 mm
Cutting Tool Size (Opt. Power Turret)□20/□16 mm□20/□16 mm□25/□20 mm□25/□20 mm□25/□20 mm
Max. Bore Size of ToolØ25 mmØ25 mmØ32 mmØ32 mmØ32 mm
Coolant Pump Motor1/4 HP1/4 HP1/4 HP1/4 HP1/4 HP
Machine Dimension (without Chip Conveyor)215x143x199 cm215x158x199 cm263x170x194 cm263x170x194 cm263x170x194 cm
Machine Weight1780 kgs1850 kgs3000 kgs3180 kgs3280 kgs
* 我们保留更改设计的权利，恕不另行通知。
