CNC Lathe with Y Axis Series

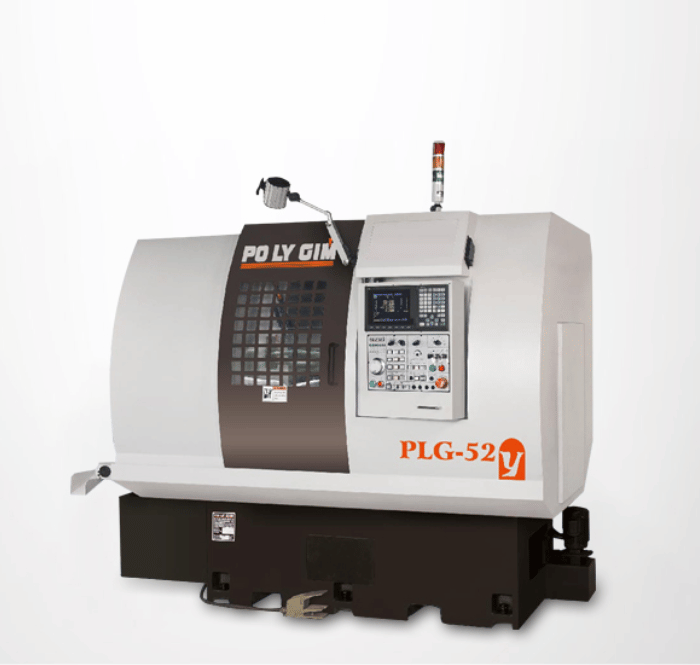

PLG 42Y/52Y/60Y
-
Spindle mounting collet chuck

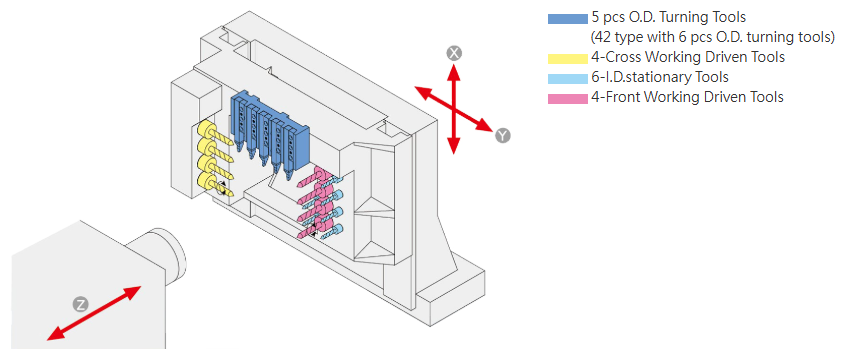

5 pcs O.D. turning tools (42 type with 6 pcs O.D.turning tools )
4 pcs Cross Working Driven Tools
6 pcs I.D. stationary Tools
4 pcs Front Working Driven Tools
Part catcher with conveyor
标准配件
-
Collet chuck (1 pc)
Foot chuck switch (1 pc)
Working light (1 pc)
Coolant device (1 set)
Leveling bolts and pads (4 pcs)
Tools and tool box (1 set)
O.D. turning tools (5 pcs) (42 type with 6 pcs O.D. turning tools)
I.D. stationary tools (6 pcs)
Cross driven tools (4 pcs)
Front off-center driven tools (4 pcs)
选择配件
-
Chip conveyor (1 unit)
Chip bucket (1 unit)
Parts catcher (1 set)
CF axis (1 set)
产品规格
| Items | PLG-42Y | PLG-52Y | PLG-60Y |
|---|---|---|---|
| Max. Machining Dia. | 42 mm | 52 mm | 60 mm |
| Max. machining length | Bar diameter x 3 | Bar diameter x 3 | Bar diameter x 3 |
| Swing Over Cross Slide | 200 mm | 200 mm | 200 mm |
| X Axis | 190 mm | 190 mm | 190 mm |
| Z Axis | 300 mm | 300 mm | 300 mm |
| Y Axis | 300 mm | 300 mm | 300 mm |
| Bore of Spindle | 55 mm | 60 mm | 85 mm |
| Bar Capacity | 42 mm | 52 mm | 60 mm |
| Spindle Nose | A2-5 | A2-6 | A2-6 |
| Collet Type | 173 E/ 42 mm | 177 E or 185 E / 52 mm | 185 E / 60mm |
| Spindle Motor | 7.5 kW / 10 HP | 7.5 kW / 10 HP | 11 kW / 15 HP |
| Z, Y Axis Motor | 1kW | 1kW | 1kW |
| X axis Motor | 1.5 kW | 1.5 kW | 1.5kW |
| Cross Spindle Driven Tools Motor | 2.2 kW | 2.2 kW | 2.2 kW |
| Front off-Center Driven Tools Motor | 2.2 kW | 2.2 kW | 2.2 kW |
| Spindle Speed | 100-5500 r.p.m. | 100-4000 r.p.m. | 100-3500 r.p.m. |
| Cross Spindle Speed | 200-5000 r.p.m. | 200-5000 r.p.m. | 200-5000 r.p.m. |
| Front off-Center Driven Tool Speed | 200-5000 r.p.m. | 200-5000 r.p.m. | 200-5000 r.p.m. |
| Rapid traverse speed(X, Z, Y Axis) | 12 m/min | 12 m/min | 12 m/min |
| Min. Input Unit | 0.001 mm | 0.001 mm | 0.001 mm |
| O.D. Tooling | 6 | 5 | 5 |
| O.D. Tool Dimension | □20 x 20 x 110 | □20 x 20 x 110 | □20 x 20 x 110 |
| I.D. Tooling | 6 | 6 | 6 |
| I.D. Tool Dimension | Ø25 mm | Ø25 mm | Ø25 mm |
| I.D. Tool Max. Drilling Dia. | Ø25 mm | Ø25 mm | Ø25 mm |
| I.D. Tool Max. Tapping Dia. | M16 | M16 | M16 |
| Cross Driven Tooling | 4 | 4 | 4 |
| Cross Driven Tooling Dimension | 16 mm (ER25) | 16 mm (ER25) | 16 mm (ER25) |
| Cross Driven Tool Max. Drilling Dia. | Ø16 mm | Ø16 mm | Ø16 mm |
| Cross Driven Tool Max. Tapping Dia. | M10 | M10 | M10 |
| Front off-Center Driven Tooling | 4 | 4 | 4 |
| Front off-Center Driven Tool Dimension | 16 mm (ER25) | 16 mm (ER25) | 16 mm (ER25) |
| Front off-Center Driven Tool Max. Drilling Dia. | Ø16 mm | Ø16 mm | Ø16 mm |
| Front off-Center Driven Tool Max. Tapping Dia. | M10 | M10 | M10 |
| Coolant Pump | 1 HP | 1 HP | 1 HP |
| Hydraulic Pump | 1 HP | 1 HP | 1 HP |
| Dimension | 2490 x 1690 x 1955 mm | 2490 x 1690 x 1955 mm | 2490 x 1690 x 1955 mm |
| Weight | 3000 kgs | 3000 kgs | 3000 kgs |
