Introduction

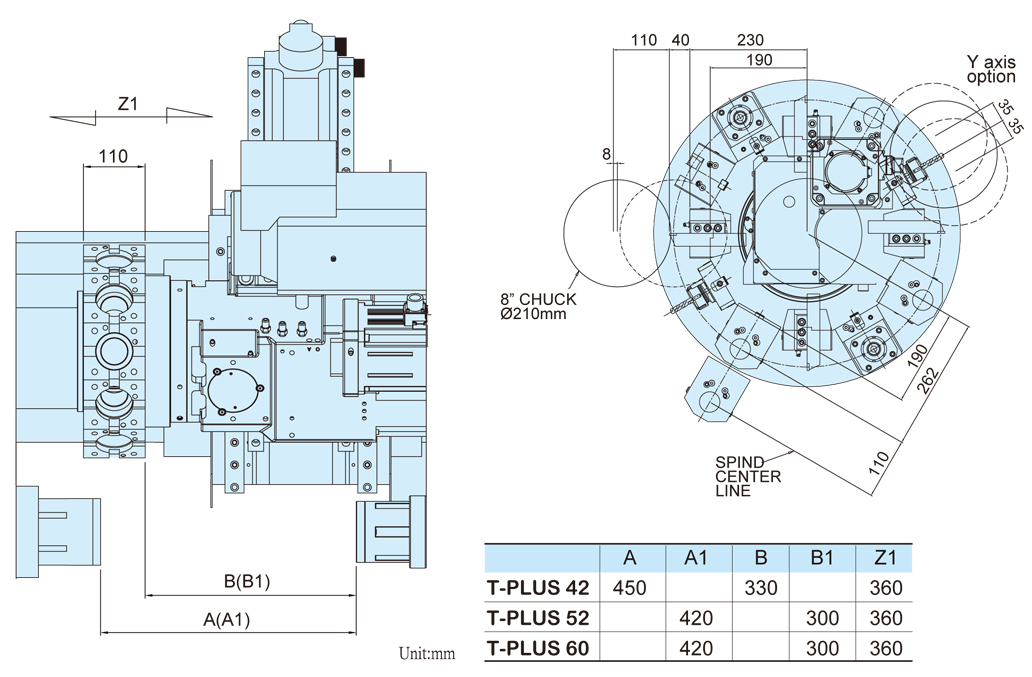

Tooling Diagram of Dual Spindle with Power Turret(Opt. Y axis) CNC Lathe

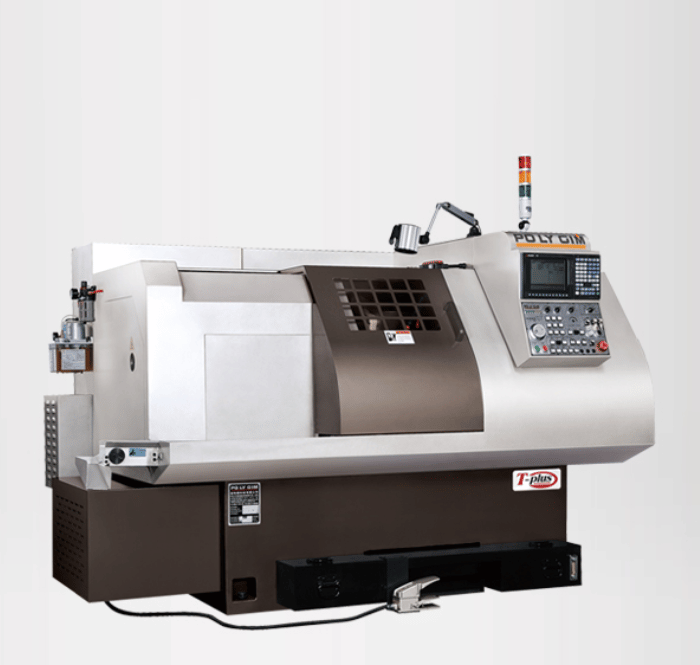

T-Plus Double Spindle with Power Turret (Opt. Y axis) Series
T-PLUS 42/52/60
-
Double Spindle optional Y-axis and 12-stations power turret to facilitate and to process the different styles of products
12-stations power turret.
Standard Accessories
-
Fanuc Controller/1 set
Main spindle : 3 jaws hydraulic chuck or collet chuck/1 PC
Sub-spindle : 6” 3 jaws hydraulic chuck or model 42 collet chuck/1 pc
12-stations power turret/1 pc
Foot chuck switch/1 pc
Working light/1 pc
Coolant device/1 set
Tool holder bushing: 8/10/12/16/20mm/2 pc/ea--- for ø25mm
Leveling bolts and pads/6 pcs
Tools and tool box/1 set
Optional Accessories
-
Chip conveyer+Bucket
Part conveyor
Y axis
Main spindle : CF axis orientation
Sub-spindle : C axis orientation
Sub-spindle : CS axis orientation
Specification
| Items | T-PLUS 42 | T-PLUS 52 | T-PLUS 60 |
|---|---|---|---|
| Max. machining dia.(with 3 jaws chuck) | Ø130 mm | Ø300 mm | Ø350 mm |
| Max. machining length | 200 mm | 200 mm | 200 mm |
| Swing Over Cross Slide | 350 mm | 350 mm | 350 mm |
| X axis travel | 220 mm | 220 mm | 220 mm |
| Z axis travel | 360 mm | 360 mm | 360 mm |
| A axis travel | 450 mm | 420 mm | 420 mm |
| Y axis travel | 70 mm | 70 mm | 70 mm |
| Bore of spindle | 55 mm | 60 mm | 88 mm |
| Max. bar feeding dia. | 42 mm | 52 mm | 60/80(opt.) mm |
| Spindle Nose | A2-5 | A2-6 | A2-6/A2-8(opt.) |
| Sub-Spindle nose | A2-5 | A2-5 | A2-5 |
| Spindle chuck | 6" | 8" | 10”/12”(opt.) |
| Sub-Spindle chuck | 6" | 6" | 6" |
| Spindle Motor | 7.5/11 kW | 7.5/11 kW | 7.5/11 , 11/15 (opt.) kW |
| Sub-Spindle motor | 2.2/3.7 kW | 2.2/3.7 kW | 2.2/3.7 kW |
| Z,X,A axes motor | 1.6 kW | 1.6 kW | 1.6 kW |
| Driven tools motor for power turret | 2.2/3.7 kW | 2.2/3.7 kW | 2.2/3.7 kW |
| Spindle Speed | 100-6000 rpm | 100-4000 r.p.m. | 100-3500, 100-3000(opt.) rpm |
| Sub-Spindle speed | 100-6000 rpm | 100-6000 rpm | 100-6000 rpm |
| Rapid traverse (X, Z, A axes) | 12 m/min | 12 m/min | 12 m/min |
| Min. input unit | 0.001 mm | 0.001 mm | 0.001 mm |
| Cutting tool size | □20 mm | □20 mm | □20 mm |
| Max. bore size of tool | Ø25 mm | Ø25 mm | Ø25 mm |
| Coolant pump motor | 1 H.P. | 1 H.P. | 1 H.P. |
| Dimension(Without Chip conveyor) | 300 x 215 x 200 cm | 300 x 215 x 200 cm | 300 x 215 x 200 cm |
| Weight | 4500 kg | 4600 kg | 4700 kg |
We reserve the rights to change the design without any prior notification.
