SUPER CSL 42/52/60

下載PDF檔案加入詢價車
    Twin Y-axes design.

    B-axis can be rotated 360˚ to perform any degree of drilling, tapping and milling operations.

    B-axis rotation is driven by a servo motor.

    Through hole max. diameter of main and sub-spindle:Ø65 mm.

    Both main and sub-spindle have Cs-axes function for performing contour machining.

    All moving axes are mounted with heavy duty, roller type linear motion guides.

    Fixed type spindle structure.

    The machine base is manufactured from high quality cast iron, tempered and stress relieved to eliminate structural deformation problems.
特点介紹

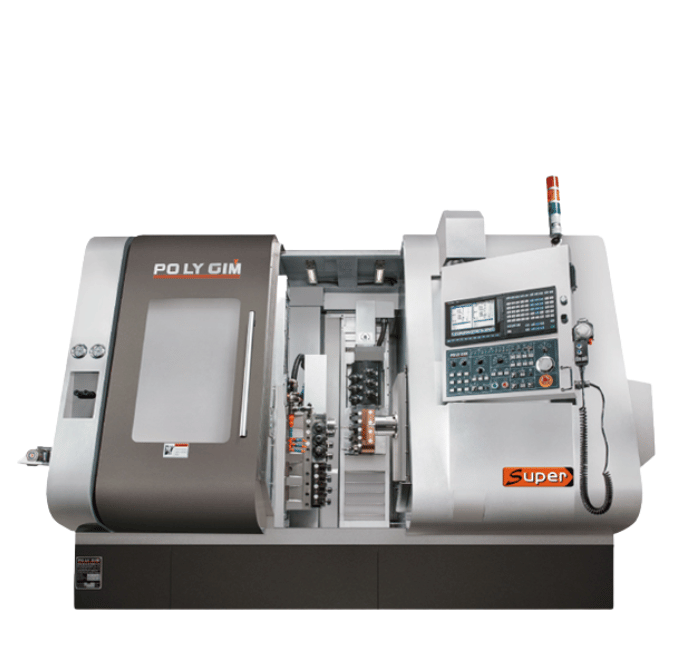

The SUPER CSL from Po Ly Gim is a multitasking turning center designed for Turning/milling operations. In addition to equip with various tool holders to meet versatile machining requirements, this machine is also designed with main and sub-spindle that allow any complicated part to be accomplished with only one setup.


Tooling System

Tooling System for main Spindle


Tooling System for Sub-spindle






标准配件
    Main spindle
    Sub-spindle
    CS axis orientation for both spindle
    Working Light
    Coolant System
    Part Catcher
    Spindle Coolant Device

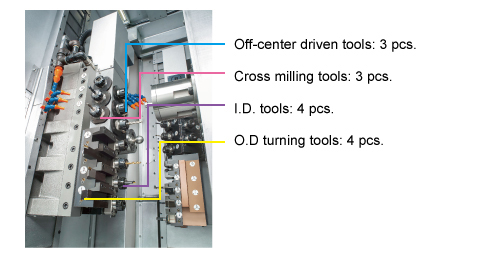

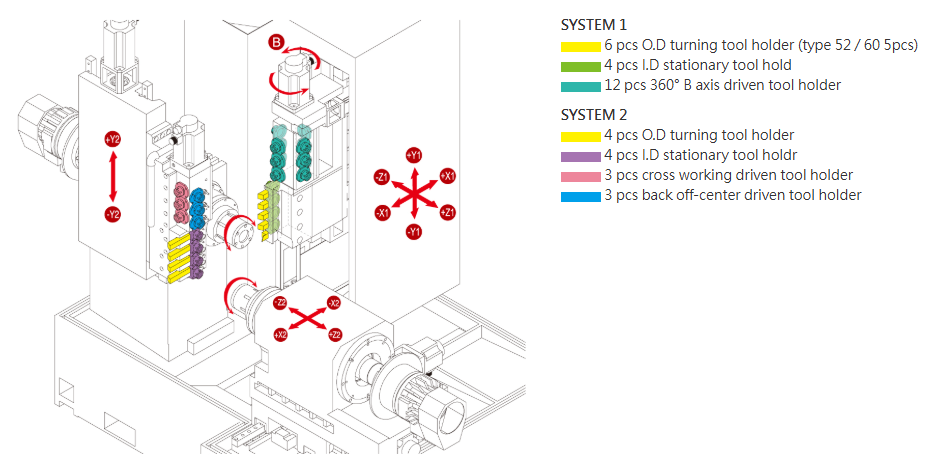

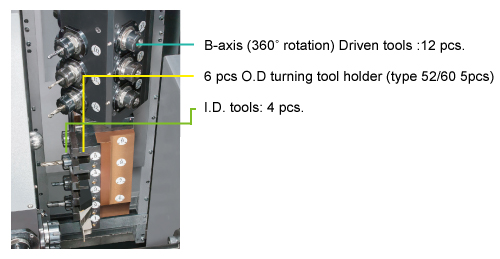

    System 1: 6 pcs O.D turning tool holder (type 52 / 60 5pcs), 4 pcs I.D. Stationary Tool Holder, 12 pcs 360° Automatic Rotary Driven Tool Holder
    System 2: 4 pcs O.D. Turning Tool Holder, 4 pcs I.D. Stationary Tool Holder, 3 pcs Cross Working Driven Tool Holder, 3 pcs Off-center Working Driven Tool Holder
选择配件
    Chip Conveyer + Bucket
    Fedek Bar Feeder DH65L ( 1.5M)
    Oil Coolant Device
产品规格
ItemsSuper CSL 42 System1Super CSL 42 System2Super CSL 52 System1Super CSL 52 System2Super CSL 60 System1Super CSL 60 System2
Working Range
Max. Machining Dia.Ø42mmØ42mmØ52mmØ52mmØ60mmØ60mm
Max. Machining Lengthpart diameter x 3
part diameter x 3
part diameter x 3
Max. Drilling CapacityØ30mmØ30mmØ30mmØ30mmØ30mmØ30mm
Toolong System
O.D. Turning Tool645454
O.D. Turning Tool Dimension□20x20x100□20x20x100□25X25X100□25X25X100□25X25X100□25X25X100
I.D. Tool444444
I.D. Tool DimensionØ25mmØ25mmØ25mmØ25mmØ25mmØ25mm
Cross Tool (power – driven tool)
3
3
3
Cross Tool Dimension
16mm (ER25)
16mm (ER25)
16mm (ER25)
Cross Tool Speed
200~6000rpm
200~6000rpm
200~6000rpm
Off-center driven Tool
3
3
3
Off-center driven Tool Dimension
16mm (ER25)
16mm (ER25)
16mm (ER25)
Off-center driven Tool Speed
200~6000rpm
200~6000rpm
200~6000rpm
360° Automatic Rotary Driven Tool12
12
12
360° Automatic Rotary Driven Tool Dimension16mm (ER25)
16mm (ER25)
16mm (ER25)
360° Automatic Rotary Driven Tool Speed200~5000rpm
200~5000rpm
200~5000rpm
Spindle
Spindle Hole Dia.Ø46mm
Ø60mm
Ø65mm
Spindle speed100~6000rpm
100~4000rpm
100~3000rpm
Sub-spindle
Sub-spindle Hole Dia.
Ø46mm
Ø60mm
Ø65mm
Sub-spindle Speed
100~6000rpm
100~4000rpm
100~3000rpm
Sub-spindle Max. Drilling Dia.
Ø30mm
Ø30mm
Ø30mm
X1, Y1, Z1 axes20m/min
20m/min
20m/min
X2, Y2, Z2 axes
20m/min
20m/min
20m/min
Motors
Main Spindle7.5/11 kW
11/15 kW
11/15 kW
Sub-spindle
7.5/11 kW
11/15 kW
11/15 kW
Y1, Y2 axes2.2 kW2.2 kW2.2 kW2.2 kW2.2 kW2.2 kW
X1, X2, Z1, Z2 axes1.5 kW1.5 kW1.5 kW1.5 kW1.5 kW1.5 kW
B axes1 kW
1 kW
1 kW
Rotary Tools4 kW4 kW4 kW4 kW4 kW4 kW
Coolant Pump1 HP1 HP1 HP1 HP1 HP1 HP
Lubrication25w25w25w25w25w25w
Machine Dimensions
Center Height1125 mm1125 mm1125 mm1125 mm1125 mm1125 mm
Weight8300 kgs8300 kgs8400 kgs8400 kgs8500 kgs8500 kgs
Dimension2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm
Dimension (with chip conveyor)3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm
Air
Air Pressure5kg/cm5kg/cm5kg/cm5kg/cm5kg/cm5kg/cm
Air Supply10L/min10L/min10L/min10L/min10L/min10L/min
* 我们保留更改设计的权利，恕不另行通知。
