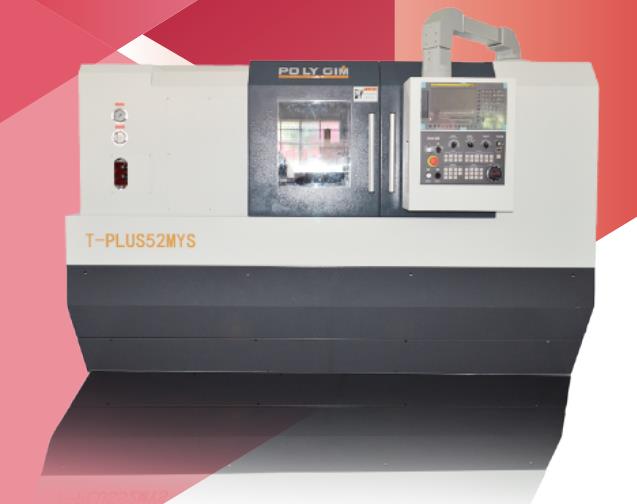

T-Plus Machining Center with Servo Tool Tower Series
-
Dual spindle design: The main spindle and auxiliary spindle can be used together for front and back processing, enabling one-machine completion without secondary operations. This not only enhances processing efficiency but also saves production time.
Dual spindle single tool turret: The servo turret motor enables rapid tool changing, significantly improving machining efficiency.
标准配件
-
Mitsubishi controller/1 set
Spindle: Three jaw hydraulic chuck or cylinder clamp type chuck/1 piece
Back shaft: 6 "three jaw hydraulic chuck or 42 type cylinder clamp chuck/1 piece
12 angle servo turret/1 unit
Clamping foot switch/1 piece
1 work light
Cooling system/1 set
Inner hole single tool holder liner: 2 pieces each on 8/10/12/16/20mm - for ø 25mm
Inner hole single tool holder liner: 2 pieces each on 8/10/12/16/20/25mm - for ø 32mm
Mechanical pads/6 pieces
Tools and Toolbox/1 set
选择配件
-
Chip conveyor+iron chip truck
Finished product conveying device
Spindle: CF axis positioning
12 angle power turret
产品规格
Z-axis travel (first spindle)Z-axis travel (second spindle)
| Items | T-PLUS 42 | T-PLUS 52 | T-PLUS 60（单主轴） |
|---|---|---|---|
| Maximum processing outer diameter (with three claws) | Ø130 mm | Ø300 mm | Ø340 mm |
| Maximum processing length | 400 mm | 400 mm | 500 mm |
| Rotation diameter on the slide seat | 380 mm | 380 mm | 380 mm |
| X-axis travel | 200 mm | 200 mm | 200 mm |
| 200 mm | 200 mm | 400 mm | |
| 450 mm | 420 mm | / | |
| Travel Y-axis | 70 mm | 70 mm | 70 mm |
| Main spindle through-hole diameter (first main spindle) | 55 mm | 60 mm | 88 mm |
| Main spindle through hole diameter (second main spindle) | 55 mm | / | |
| Rod accommodating diameter (first spindle) | 42 mm | 52 mm | 72/88(選配) mm |
| Rod accommodating diameter (second spindle) | 42 mm | / | |
| Spindle Nose End (First Spindle) | A2-5 | A2-6 | A2-6/A2-8(選配) |
| Spindle Nose End (Second Spindle) | A2-5 | A2-5 | / |
| Spindle clamp (first spindle) | 6" | 8" | 10”/12”(選配) |
| Spindle clamp (second spindle) | 6" | 6" | / |
| Spindle motor (first spindle) | 7.5 / 11kW | 7.5 / 11kW | 11/ 15kW |
| Spindle motor (first spindle) | 5.5 / 7.5kW | 5.5 / 7.5kW | / |
| Power milling motor | 3.7/ 5.5kW | ||
| Spindle speed (first spindle) | 100-6000 r.p.m. | 100-4000 r.p.m. | 100-3500, 100-3000(選配) r.p.m. |
| Spindle speed (second spindle) | 100-6000 r.p.m. | 100-6000 r.p.m. | / |
| Waijing knife | □20 mm | ||
| Inner diameter knife | Ø25 mm/Ø32 mm | ||
| 1 HP | 1 HP | 1 HP | |
| Mechanical dimensions (including iron chip machine) | 340 x 189 x 184 cm | 340 x 189 x 184 cm | 340 x 189 x 184 cm |
| Mechanical dimensions (excluding iron chip machine) | 257 x 189 x 184 cm | 257 x 189 x 184 cm | 257 x 189 x 184 cm |
| Mechanical net weight | 4500 kg | 4600 kg | 4000 kg |
