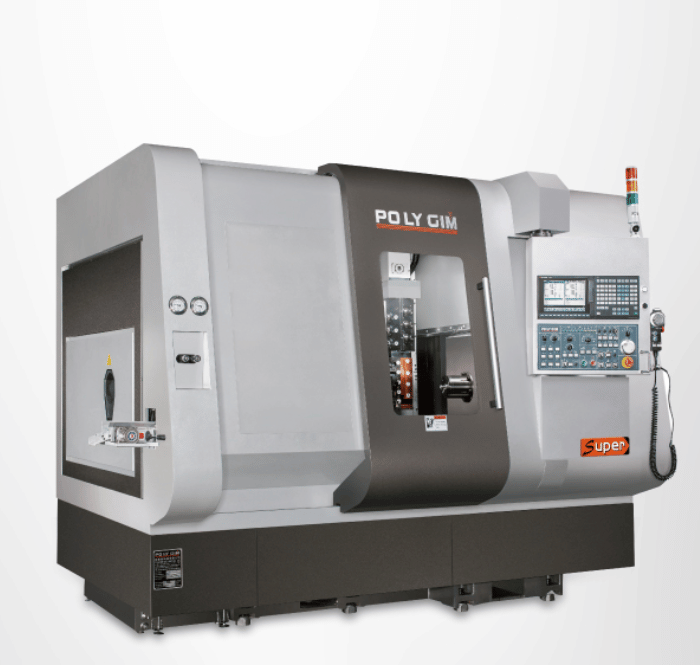

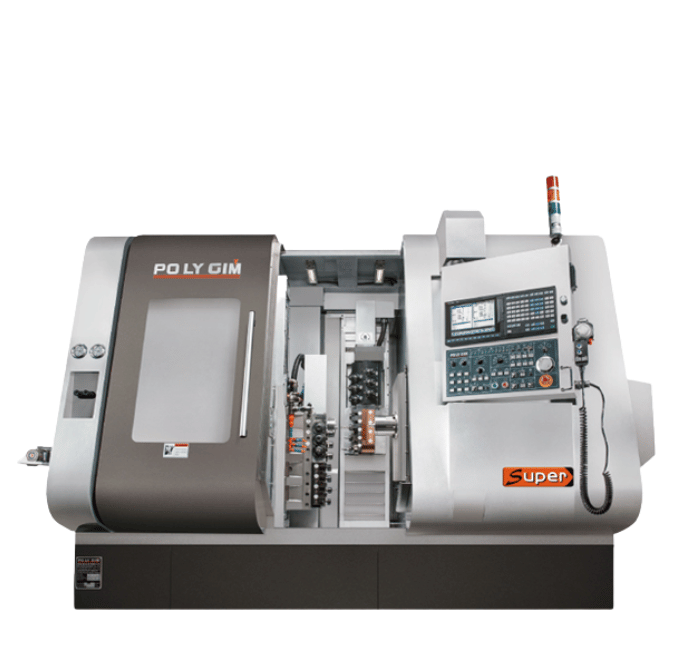

Super CSL lathe

下載PDF檔案加入詢價車
    Dual Y-axis design.
    The B-axis can rotate 360 degrees, suitable for drilling, tapping, and milling at any angle.
    The B-axis rotation is driven by a servo motor.
    The maximum through-hole diameter of the spindle and back spindle is 65 mm.

    Both the spindle and the back spindle have Cs axis function to perform contour machining.

    All moving axes adopt heavy-duty roller type linear sliding rails.

    The spindle head is a fixed structure.

    The machine base is made of high-grade cast iron, which has undergone tempering and stress relief treatment to ensure that the structure does not deform for a long time.
特点介紹

PolyGram SUPER CSL is a multi-functional turn-mill composite turning center. Equipped with a variety of tool holders to meet all-round machining requirements, it also features front and back spindle designs, enabling one-time completion of processing for any complex workpieces.


Tool System


Spindle Tool System




Backbone Tooling System


标准配件
    Main spindle
    Back spindle
    Main/Back Axis CS Axis Positioning
    Work light
    Cooling system
    Workpiece collector
    Spindle cooling machine
    System 1: 6 outer diameter tool holders (5 for 52/60 type), 4 internal tool holders, and 12 360 ° rotating power tool holders,
    System 2: 4 outer diameter tool holders, 4 inner edge tool holders, 3 side milling tool holders, and 3 end face power tool holders
选择配件
    Iron chip machine+iron chip bucket
    Guantong feeding machine DH65L (1.5 meters)
    Oil temperature cooler
产品规格
Inner diameter tool size360 ° rotating power tool count360 ° rotating power tool speedInner diameter of back spindleSpindle motorY1, Y2 axis motorsPower tool motor
ItemsSuper CSL 42
第一系統		Super CSL 42
第二系統		Super CSL 52
第一系統		Super CSL 52
第二系統		Super CSL 60
第一系統		Super CSL 60
第二系統
Processing scope
Maximum processing outer diameterØ42mmØ42mmØ52mmØ52mmØ60mmØ60mm
Maximum processing length材料外徑 x 3
材料外徑 x 3
材料外徑 x 3
Maximum drilling diameterØ30mmØ30mmØ30mmØ30mmØ30mmØ30mm
Tool system
Number of outer diameter cutting tools645454
Outer diameter tool size□20x20x100□20x20x100□25X25X100□25X25X100□25X25X100□25X25X100
Number of inner diameter cutting tools444444
Ø25mmØ25mmØ25mmØ25mmØ25mmØ25mm
Number of side milling tools
3
3
3
Side milling tool size
16mm (ER25)
16mm (ER25)
16mm (ER25)
Side milling tool speed
200~6000rpm
200~6000rpm
200~6000rpm
Number of end face power cutting tools
3
3
3
Dimensions of end face power cutting tools
16mm (ER25)
16mm (ER25)
16mm (ER25)
End face power tool speed
200~6000rpm
200~6000rpm
200~6000rpm
12
12
12

360 ° rotating power tool size16mm (ER25)
16mm (ER25)
16mm (ER25)
200~5000rpm
200~5000rpm
200~5000rpm

Spindle
Spindle inner diameterØ46mm
Ø60mm
Ø65mm
Spindle speed100~6000rpm
100~4000rpm
100~3000rpm
Back spindle
Ø46mm
Ø60mm
Ø65mm

Back spindle speed
100~6000rpm
100~4000rpm
100~3000rpm
Maximum drilling diameter for backside processing
Ø30mm
Ø30mm
Ø30mm
X1, Y1, Z1 軸20m/min
20m/min
20m/min
X2, Y2, Z2 軸
20m/min
20m/min
20m/min
Motor
7.5/11 kW
11/15 kW
11/15 kW

Back axis motor
7.5/11 kW
11/15 kW
11/15 kW
2.2 kW2.2 kW2.2 kW2.2 kW2.2 kW2.2 kW
X1, X2, Z1, Z2 axis motors1.5 kW1.5 kW1.5 kW1.5 kW1.5 kW1.5 kW
B-axis motor1 kW
1 kW
1 kW
4 kW4 kW4 kW4 kW4 kW4 kW
Cutting motor1 HP1 HP1 HP1 HP1 HP1 HP
Lubricating oil motor25w25w25w25w25w25w
Mechanical dimensions
Spindle center height1125 mm1125 mm1125 mm1125 mm1125 mm1125 mm
weight8300 kgs8300 kgs8400 kgs8400 kgs8500 kgs8500 kgs
Mechanical dimensions2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm2900x2330x2270 mm
Mechanical dimensions (with chip conveyor)3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm3850x2330x2270 mm
Air pressure
Air pressure5kg/cm5kg/cm5kg/cm5kg/cm5kg/cm5kg/cm
Air volume10L/min10L/min10L/min10L/min10L/min10L/min
* 我们保留更改设计的权利，恕不另行通知。
