Processing Examples
The 3-axis synchronous tool holder can clamp 3 cutting tools
3-axis synchronous tool holder can lock 6 tools
4 inner hole tool holders equipped on comb-style tool post
4 rear inner hole tool holders (for optional back spindle)
Optional workpiece collector for back spindle

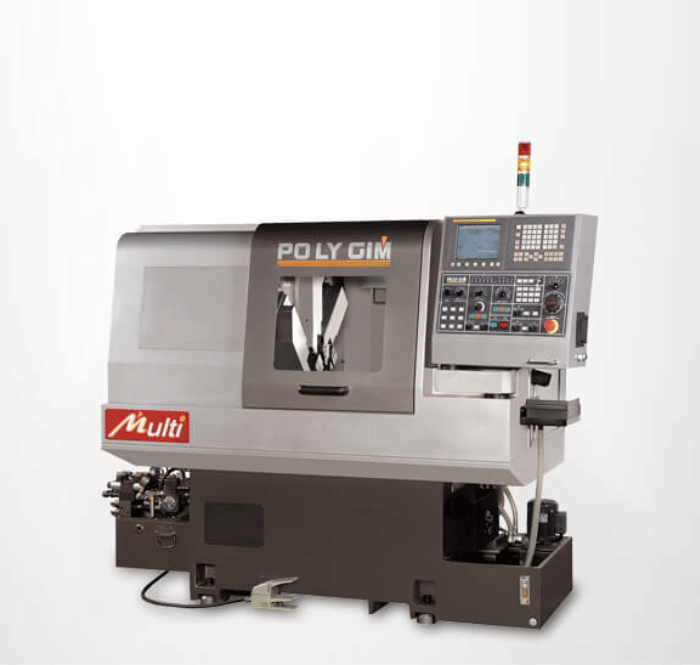

Multi 25
Z2, Z3, A2 = 60 mm
X2, X3, Y2 = 70 mm
Multi 25-S (Option sub-spindle)
Z2, Z3, A2 = 100 mm
X2, X3, Y2 = 50 mm
| Items | MULTI 25 | MULTI 25-S |
|---|---|---|
| Maximum Machining Outer Diameter | Ø26 mm | Ø26 mm |
| Maximum processing length | 材料外徑 x3 | 材料外徑 x3 |
| X-axis (vertical) travel stroke | 170 mm | 170 mm |
| Z-axis (horizontal) travel stroke | 150 mm | 150 mm |
| Spindle through hole diameter | 34 mm | 34 mm |
| Bar stock accommodation diameter | 26 mm | 26 mm |
| Collet Model | 161 E | 161 E |
| Spindle Motor | 2.2 kw | 2.2 kw |
| Spindle Speed | 100-5000 r.m.p. | 100-5000 r.m.p. |
| Spindle Back Motor (Optional) | 1.1 kw | 1.1 kw |
| Spindle Back Speed (Optional) | 100-5000 r.m.p. | 100-5000 r.m.p. |
| Rapid movement of X and Z axes | 15 m/min | 15 m/min |
| Minimum input unit | 0.001 mm | 0.001 mm |
| Use cutting tools | □16 mm | □16 mm |
| Largest Boring Tool | Ø20 mm | Ø20 mm |
| Axial Motor | 0.75 kw | 0.75 kw |
| Axial Motor (Back Spindle Optional) | 0.75kw | 0.75kw |
| Axial motor | 0.5kw | 0.5kw |
| Number of Synchronous Tools on Spindle | 3 pc | 6 pc |
| Cooling pump motor | 1/2 H.P. | 1/2 H.P. |
| Hydraulic pump motor | 1 H.P. | 1 H.P. |
| Machine Dimensions | 1658 x 1362 x 1530 mm | 1658 x 1362 x 1530 mm |
| Machine Dimensions (Optional Back Spindle) | 2000 x 1359 x 1657 mm | 2000 x 1359 x 1657 mm |
| Machine Net Weight (Without Iron Scrap Collector) | 1220 kgs | 1320 kgs |
| Machine Net Weight (With Optional Back Spindle, Without Chip Remover) | 1880 kgs | 1980 kgs |
