特点介紹
加工實例

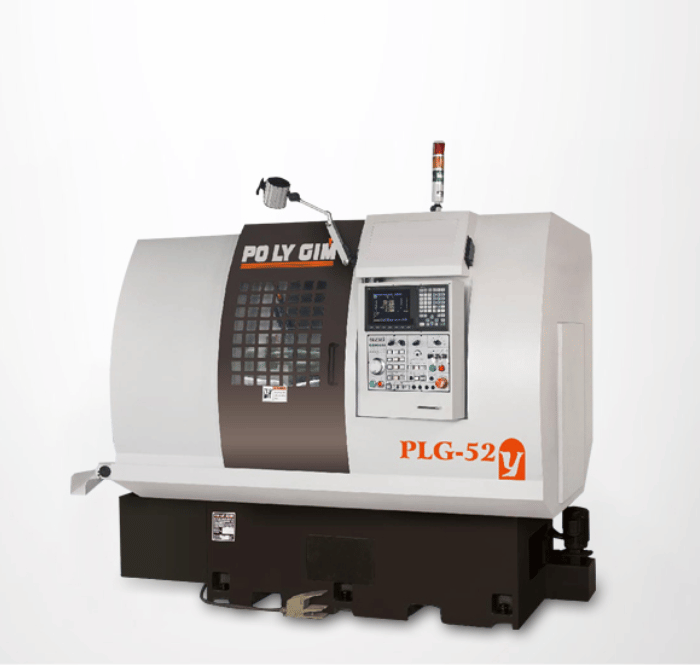

PLG Y-axis Matching Series
-
Spindle with collet chuck
5 OD tools (Model 42 equipped with 6 OD tools)
4 side drilling and milling tools
6 fixed ID tools
4 front drilling and milling tools
Workpiece collector with finished product conveyor belt
标准配件
-
Collet chuck (1 piece)
Foot switch for chuck (1 piece)
Work light (1 piece)
Cooling system (1 set)
Mechanical cushion blocks (4 pieces)
Tools and toolbox (1 set)
Number of outer diameter cutting tools (5 pieces) (Model 42 is equipped with 6 outer diameter cutting tools)
Number of inner diameter cutting tools (6 pieces)
Number of side drilling and milling tools (4 pieces)
Number of front eccentric drilling and milling tools (4 pieces)
选择配件
-
Chip Conveyor (1 unit)
Chip Barrel (1 unit)
Finished Product Collector (1 set)
CF Shaft (1 set)
产品规格
| Items | PLG-42Y | PLG-52Y | PLG-60Y |
|---|---|---|---|
| Maximum Machining Outer Diameter | 42 mm | 52 mm | 60 mm |
| Maximum processing length | Material outer diameter × 3 | Material outer diameter × 3 | Material outer diameter × 3 |
| Slide seat turning radius | 200 mm | 200 mm | 200 mm |
| X -axis travel | 190 mm | 190 mm | 190 mm |
| Z -axis travel | 300 mm | 300 mm | 300 mm |
| Y -axis travel | 300 mm | 300 mm | 300 mm |
| Spindle through-hole diameter | 55 mm | 60 mm | 85 mm |
| Bar accommodating diameter | 42 mm | 52 mm | 60 mm |
| Spindle Nose | A2-5 | A2-6 | A2-6 |
| Collet type | 173 E/ 42 mm | 177 E or 185 E / 52 mm | 185 E / 60mm |
| Spindle Motor | 7.5 kW / 10 HP | 7.5 kW / 10 HP | 11 kW / 15 HP |
| Z and Y axis motors | 1kW | 1kW | 1kW |
| X-axis motor | 1.5 kW | 1.5 kW | 1.5kW |
| Side Drilling and Milling Spindle Motor | 2.2 kW | 2.2 kW | 2.2 kW |
| Front Drilling and Milling Spindle Motor | 2.2 kW | 2.2 kW | 2.2 kW |
| Spindle Speed | 100-5500 r.p.m. | 100-4000 r.p.m. | 100-3500 r.p.m. |
| Side Drilling and Milling Spindle Speed | 200-5000 r.p.m. | 200-5000 r.p.m. | 200-5000 r.p.m. |
| Front drilling and milling spindle speed | 200-5000 r.p.m. | 200-5000 r.p.m. | 200-5000 r.p.m. |
| Rapid positioning of X, Y and Z axes | 12 m/min | 12 m/min | 12 m/min |
| Minimum input unit | 0.001 mm | 0.001 mm | 0.001 mm |
| Number of outer diameter tools | 6 | 5 | 5 |
| Outer diameter tool size | □20 x 20 x 110 | □20 x 20 x 110 | □20 x 20 x 110 |
| Number of inner diameter tools | 6 | 6 | 6 |
| Inner Diameter Tool Size | Ø25 mm | Ø25 mm | Ø25 mm |
| Maximum Drilling Diameter of Boring Tool | Ø25 mm | Ø25 mm | Ø25 mm |
| Maximum tapping size for internal boring tool | M16 | M16 | M16 |
| Number of side milling cutters | 4 | 4 | 4 |
| Side Milling Cutter Dimensions | 16 mm (ER25) | 16 mm (ER25) | 16 mm (ER25) |
| Maximum Drilling Diameter of Side Milling Cutter | Ø16 mm | Ø16 mm | Ø16 mm |
| Maximum Tapping Size of Side Milling Cutters | M10 | M10 | M10 |
| Number of front eccentric drilling and milling cutters | 4 | 4 | 4 |
| Dimensions of Front Eccentric Drilling and Milling Cutters | 16 mm (ER25) | 16 mm (ER25) | 16 mm (ER25) |
| Maximum Drilling Diameter of Front Eccentric Drilling and Milling Cutters | Ø16 mm | Ø16 mm | Ø16 mm |
| Maximum tapping size of front eccentric drilling and milling cutter | M10 | M10 | M10 |
| Cooling pump motor | 1 HP | 1 HP | 1 HP |
| Hydraulic tank motor | 1 HP | 1 HP | 1 HP |
| Machine Dimensions | 2490 x 1690 x 1955 mm | 2490 x 1690 x 1955 mm | 2490 x 1690 x 1955 mm |
| Net machine weight | 3000 kgs | 3000 kgs | 3000 kgs |
* 我们保留更改设计的权利，恕不另行通知。
