PLG-42/42L/52/60/75 Series

下載PDF檔案加入詢價車
    PLG-42: Eight-tool turret, workpiece collector and comb-type tool holders available as optional extras for faster and more accurate tool changeovers | Widened chip conveyor facilitates easier chip removal

    PLG-42L: Live drill-mill tool holders support multi-sided machining

    PLG-52/60/75: Finished product conveyor | Chip conveyor | Tailstock (programmable quill travel of 100mm)
特点介紹


Model: PLG-42

8-station turret available as an optional extra

Workpiece collector

Comb-type tool holders enable faster and more accurate tool changeovers

Widened chip conveyor simplifies chip removal operations




Model: PLG-42L


The power drill-milling tool holder enables multi-sided machining.


Model: PLG-52/60/75

Finished Product Conveying Device

Chip Conveyor

Tailstock (Programmable Thimble Stroke: 100mm)



Hydraulic Drilling Machine Series


Equipped with a dedicated hydraulic system, you may select any of the following drilling machines to perform special drilling functions.

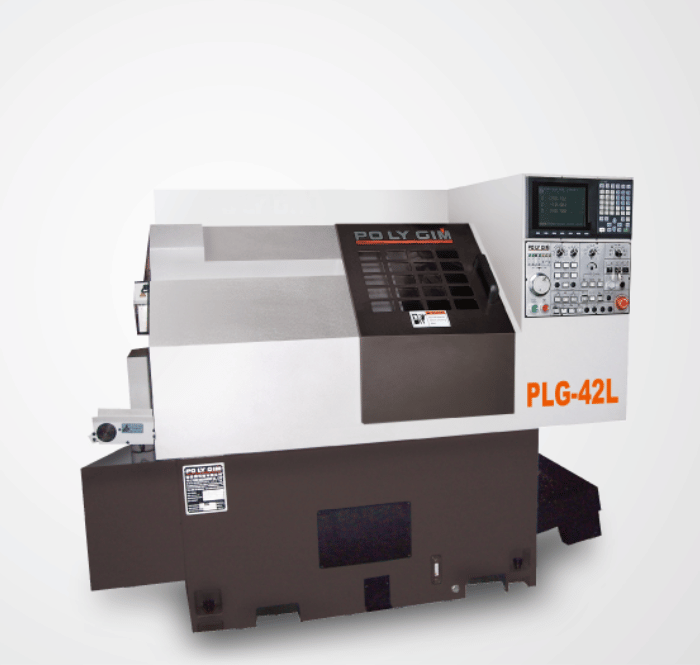

PLG-42L equipped with Y-axis and 4 side power drill-milling tool holders


刀具配置 A


刀具配置 B



工作行程圖

标准配件
    控制器:三菱 (1 套)
    三爪油壓夾頭 (1 個)
    夾頭腳踏開關 (1 個)
    工作燈 (1 個)
    工具及工具箱 (1 組)
    冷卻系統 (1 組)
    櫛式刀盤 (1 個)
    機械墊塊 6個( 42型4個 )
    內孔刀座 (3 個)
    外徑上下刀座(4 個)
    內孔單刀架襯套: PLG-42(各 2 個) (8mm, 10mm, 12mm, 16mm, 20mm)
    內孔單刀架襯套: PLG-52/60/75(各 2 個) (8mm, 10mm, 12mm, 16mm, 20mm, 25mm)
选择配件
    PLG-42/52/60/75: 八角油壓刀塔, 排屑機 + 鐵屑車, 成品收集器或成品輸送裝置, 尾座 (移動方式為手調)
    PLG-42L: 八角伺服轉塔, 2孔側面鑽銑刀具刀座, 3孔端面鑽銑刀具刀座, 成品輸送裝置, 排屑機+鐵屑車
产品规格
ItemsPLG-42PLG-42LPLG-52PLG-60PLG-75
Maximum Machining Outer Diameter (with 3-jaw chuck)Ø130 mmØ130 mmØ300 mmØ380 mmØ380 mm
Maximum processing length棒材外徑 x 3棒材外徑 x 3棒材外徑 x 3棒材外徑 x 3棒材外徑 x 3
(With Tailstock) - Comb Type220 mm220 mm480 mm480 mm480 mm
(Optional tool turret)160 mm160 mm420 mm400 mm400 mm
Swing diameter160 mm160 mm200 mm200 mm200 mm
X-axis travel230 mm300 mm310 mm310 mm300 mm
Z-axis travel250 mm250 mm520 mm520 mm520 mm
(Select Side Drilling & Milling)-190 mm---
Through-hole diameter of spindle55 mm55 mm60 mm85 mm85 mm
Bar stock accommodating diameter42 mm42 mm52 mm60 mm75 mm
spindle noseA2-5A2-5A2-6A2-6A2-8
spindle chuck6"6"8"10"10"
Spindle motor5.5kW/7.5HP5.5kW/7.5HP7.5kW/10HP11kW/15HP11kW/15HP
X-axis motor1kW1kW1.5kW1.5kW1.5kW
Z-axis motor1kW1kW1kW1kW1kW
End/Side Power Drilling & Milling Motor (Optional)-4kW4kW4kW4kW
Power Turret Drilling & Milling Motor (Optional)2.2kW/3HP2.2kW/3HP3.7kW/5HP3.7kW/5HP3.7kW/5HP
Spindle Speed100-6000 r.p.m.100-6000 r.p.m.100-4000 r.p.m.100-3500 r.p.m.100-3000 r.p.m.
Rapid Displacement (X, Z Axes)16 m/min16 m/min12 m/min12 m/min12 m/min
Minimum input unit0.001 mm0.001 mm0.001 mm0.001 mm0.001 mm
Using cutting tools (optional power turret)□20/□16 mm□20/□16 mm□25/□20 mm□25/□20 mm□25/□20 mm
Largest Boring ToolØ25 mmØ25 mmØ32 mmØ32 mmØ32 mm
Cooling pump motor1/4 HP1/4 HP1/4 HP1/4 HP1/4 HP
Machine Dimensions (Excluding Chip Conveyor)215x143x199 cm215x158x199 cm263x170x194 cm263x170x194 cm263x170x194 cm
Net Weight of Machine1780 kgs1850 kgs3000 kgs3180 kgs3280 kgs
* 我们保留更改设计的权利，恕不另行通知。
