特点介紹
The comb-type tool holder enables faster tool changing and can hold up to 7 tools.
The spindle can be fitted with either a collet chuck or a three-jaw chuck for your selection.

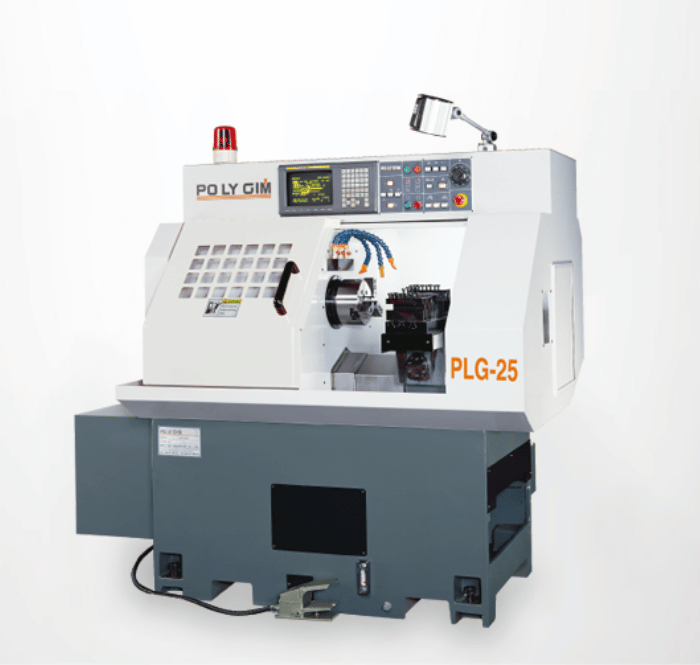

PLG-25 CNC Lathe
-
Comb-type tool holders enable faster tool changing and can hold up to 7 tools.
The spindle can be fitted with a collet chuck or three-jaw chuck for your selection.
标准配件
-
Type 25 Collet Chuck (1 piece)
Chuck Foot Switch (1 piece)
Illumination Lamp (1 piece)
Tools and Toolbox (1 set)
Coolant System (1 set)
Machine Leveling Blocks (4 pieces)
External Turning Tool Holders (4 pieces)
Internal Boring Tool Holders (4 pieces)
Single Boring Sleeve for Inner Hole, 8/10/12/16/20 mm (2 pieces each)
选择配件
-
Three-jaw chuck
Scrap conveyor
Scrap barrel
Finished product collecting device
产品规格
| Items | PLG-25 |
|---|---|
| Maximum Machining Outer Diameter | 60 (with three-jaw chuck) / 26 (with collet chuck) |
| Maximum processing length | Bar outer diameter × 3 |
| Rotating radius on the sliding seat | 160 mm |
| X-axis (vertical) travel range | 230 mm |
| Z-axis (horizontal) travel | 230 mm |
| Through-hole diameter of spindle | 38 mm |
| Bar storage diameter | 26 mm |
| Spindle Nose End | Ø85 mm |
| Spindle Chuck | 4" |
| Spindle motor | 3.7 kW / 5 H.P. |
| Spindle speed | 100-6000 r.p.m. |
| Fast movement of X and Y axes | 16 m/min |
| Minimum input unit | 0.001 mm |
| Use cutting tools | □20 mm |
| Largest boring tool | Ø25 mm |
| Cooling auxiliary motor | 1/4 H.P. |
| Machine Dimensions (Including Chip Conveyor) | 2440 x 1490 x 1830 mm |
| Machine Dimensions | 1830 x 1490 x 1830 mm |
| Net weight of machine | 1680 kgs |
* 我们保留更改设计的权利，恕不另行通知。
