特点介紹
The main spindle and sub-spindle can work in tandem to perform front and back machining in a single machine without secondary processing, which not only boosts machining efficiency but also cuts production time.

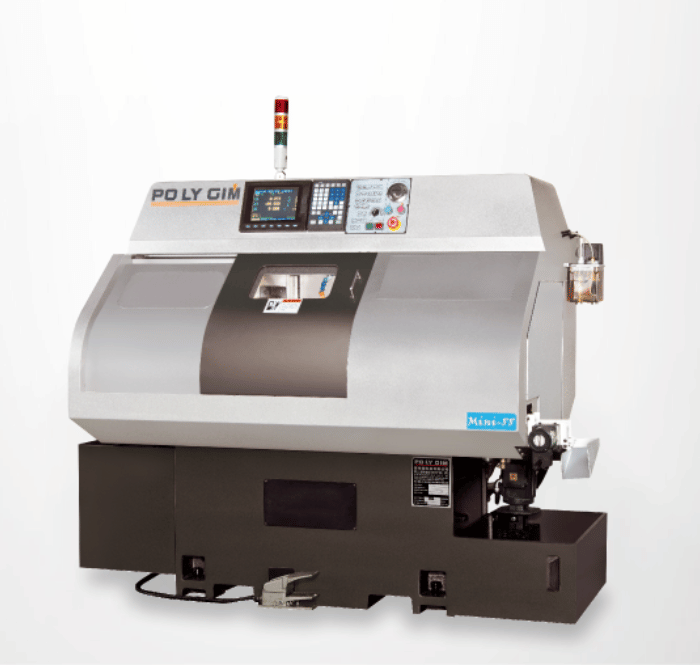

Mini-88-25 CNC Lathe
-
Dual-spindle Design
Servo turret can greatly improve processing efficiency
标准配件
-
Main Spindle: 4" 3-jaw hydraulic chuck or Type 25 collet chuck (1 set)
Sub-spindle: 4" 3-jaw hydraulic chuck or Type 25 collet chuck (1 set)
8-station servo turret (1 set)
Chuck foot switch (1 piece)
Work light (1 piece)
Cooling system (1 set)
Bushings for inner hole single tool post (2 pieces each)
Machine leveling blocks (4 pieces)
Tools and toolbox (1 set)
选择配件
-
Scrap Conveyor (1 unit)
Scrap Bin (1 unit)
Finished Product Collector (1 set)
产品规格
| Items | First Main Axis | Second Main Axis |
|---|---|---|
| Maximum machining outer diameter | Ø80 mm | Ø80 mm |
| Maximum Processing Length | 220 mm | - |
| Ø400 mm | - | |
| X-axis | 80 mm | - |
| Z-axis | 280 mm | - |
| A-axis | - | 220 mm |
| Fast Shift | 12 m/min | 12 m/min |
| Bar stock accommodating diameter | 26 mm | - |
| Spindle through-hole diameter | Ø26 mm | Ø26 mm |
| spindle nose | Ø85 mm | Ø85 mm |
| chuck | 4" | 4" |
| Collet type | 161E | 161E |
| Spindle motor | 2.2 kW | 1.5 kW |
| X, Z, A axis motors | 0.75 kW | 0.75 kW |
| Spindle Speed | 100~6000 r.p.m. | 100~6000 r.p.m. |
| External Turning Tool | □16 mm | □16 mm |
| Internal turning tool | Ø20 mm | Ø20 mm |
| cooling pump | 1 H.P. | - |
| Machine Dimensions | 2000 x 1200 x 1680 mm | - |
| Net machine weight | 1490 kg | - |
* 我们保留更改设计的权利，恕不另行通知。
