The design of equipping tool holders on the Y-axis replaces the original power turret design and allows installation of:
- 6 external turning tools
- 4 internal turning tools
- 4 side drilling and milling tools
- 4 front eccentric drilling and milling tools

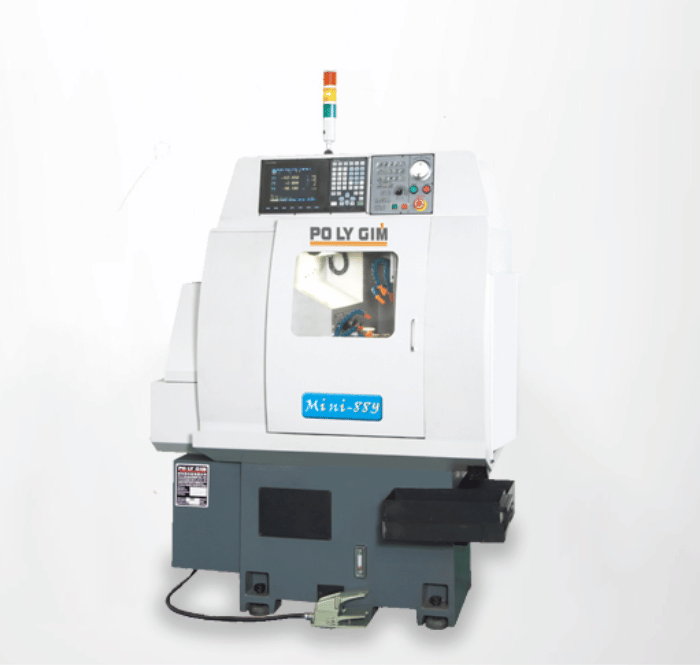

| Item | MINI-88Y |
|---|---|
| Maximum Machining Outer Diameter | 25 mm |
| Maximum processing length | 材料外徑 x 3 |
| X-axis travel | 165 mm |
| Z-axis travel | 150 mm |
| Y-axis travel | 148 mm |
| Spindle through-hole diameter | 34 mm |
| Bar storage diameter | 26 mm |
| Spindle Nose End | Ø85 mm |
| Collet Type | 161 E / 25 mm |
| Spindle Motor | 2.2 kW / 3 H.P. |
| X, Z, Y axis motors | 0.75 kW |
| Side and Front Drilling & Milling Spindle Motor | 0.75 kW |
| Spindle speed | 100-6000 r.p.m. |
| Side Drilling and Milling Spindle Speed | 200-6000 r.p.m. |
| Front drilling and milling spindle speed | 200-6000 r.p.m. |
| Spindle Positioning | 5° |
| Rapid displacement of X, Y and Z axes | 12 m/min |
| Minimum input unit | 0.001 mm |
| Number of outer diameter tools | 6 |
| Outer Diameter Tool Size | □12 X 12 X 100 |
| Number of inner diameter cutting tools | 4 |
| Inner diameter tool size | Ø20 mm |
| Maximum drilling diameter of internal turning tools | Ø20 mm |
| Maximum tapping size of internal diameter cutting tool | M8 |
| Number of side milling cutters | 4 |
| Side Milling Cutter Dimensions | 10 mm (ER16) |
| Maximum Drilling Diameter of Side Milling Cutters | Ø10 mm |
| Maximum tapping size of side milling cutter | M8 |
| Number of front eccentric drilling and milling cutters | 4 |
| Size of Front Eccentric Drilling and Milling Cutter | 10 mm (ER16) |
| Drilling Diameter of Front Eccentric Drilling and Milling Cutter | Ø10 mm |
| Maximum tapping size of front eccentric drilling and milling cutter | M8 |
| Cooling pump motor | 1/2 H.P. |
| Hydraulic tank motor | 1/2 H.P. |
| Machine dimensions | 1420 x 1210 x 1710 mm |
| Net Weight of Machine | 1288 kgs |
