特点介紹
Main spindle for front working,sub spindle for the back working, two spindle work simultaneously.

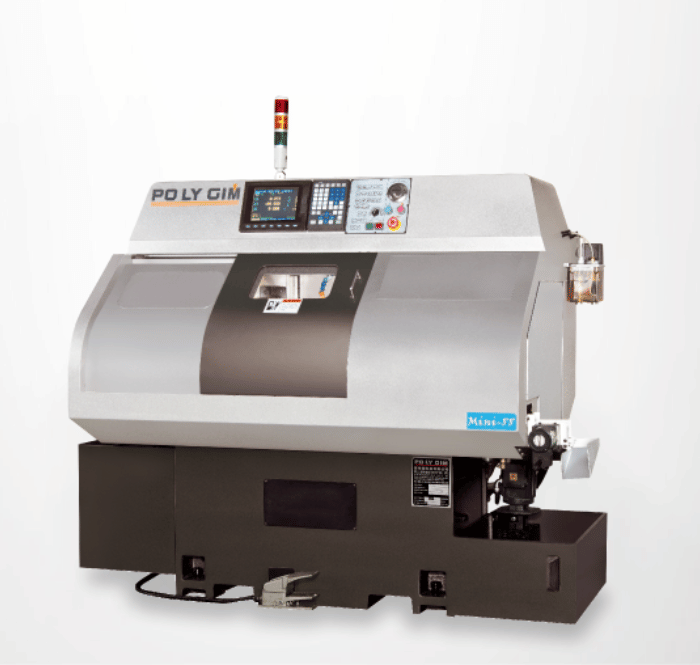

Mini-88-25 CNC Lathe
Mini-88-25
-
Double Spindle Design
Servo turret increases turning efficiency.
标准配件
-
Main spindle: 4" 3 Jaws hydraulic chuck or model 25 collet chuck(1 set)
Sub spindle: 4" 3 Jaws hydraulic chuck or model 25 collet chuck(1 set)
8-stations servo turret (1 set)
Foot chuck switch (1 pc)
Working light (1 pc)
Coolant device (1 set)
Tool holder bushing: 6/8/10/12/16mm (2 pc/ea)
Leveling bolts and pads (4 pcs)
Tools and tool box (1 set)
选择配件
-
Chip conveyor (1 unit)
Chip bucket (1 unit)
Part catcher (1 set)
产品规格
| Items | Main Spindle | Sub Spindle |
|---|---|---|
| Max. Machining Dia. | Ø80 mm | Ø80 mm |
| Max. Machining Length | 220 mm | - |
| Swing | Ø400 mm | - |
| X Axis | 80 mm | - |
| Z Axis | 280 mm | - |
| A Axis | - | 220 mm |
| Rapid Traverse | 12 m/min | 12 m/min |
| Bar Capacity | 26 mm | - |
| Bore of Spindle | Ø26 mm | Ø26 mm |
| Spindle Nose | Ø85 mm | Ø85 mm |
| Chuck | 4" | 4" |
| Collet Type | 161E | 161E |
| Spindle Motor | 2.2 kW | 1.5 kW |
| X, Z, A Axis Motor | 0.75 kW | 0.75 kW |
| Spindle Speed | 100~6000 r.p.m. | 100~6000 r.p.m. |
| O.D. Tool | □16 mm | □16 mm |
| I.D. Tool | Ø20 mm | Ø20 mm |
| Coolant Pump | 1 H.P. | - |
| Dimension | 2000 x 1200 x 1680 mm | - |
| Weight | 1490 kg | - |
* 我们保留更改设计的权利，恕不另行通知。
