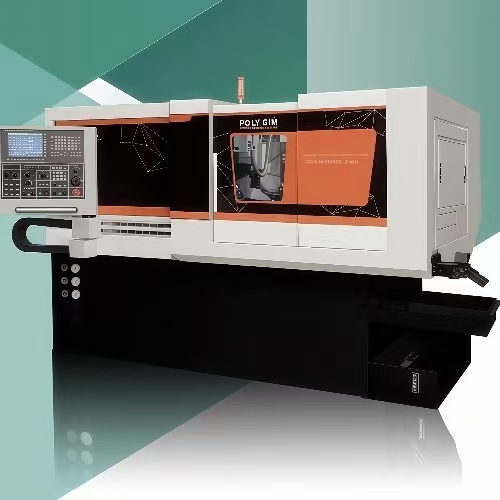

DIAMOND 25/32/42 CSL系列

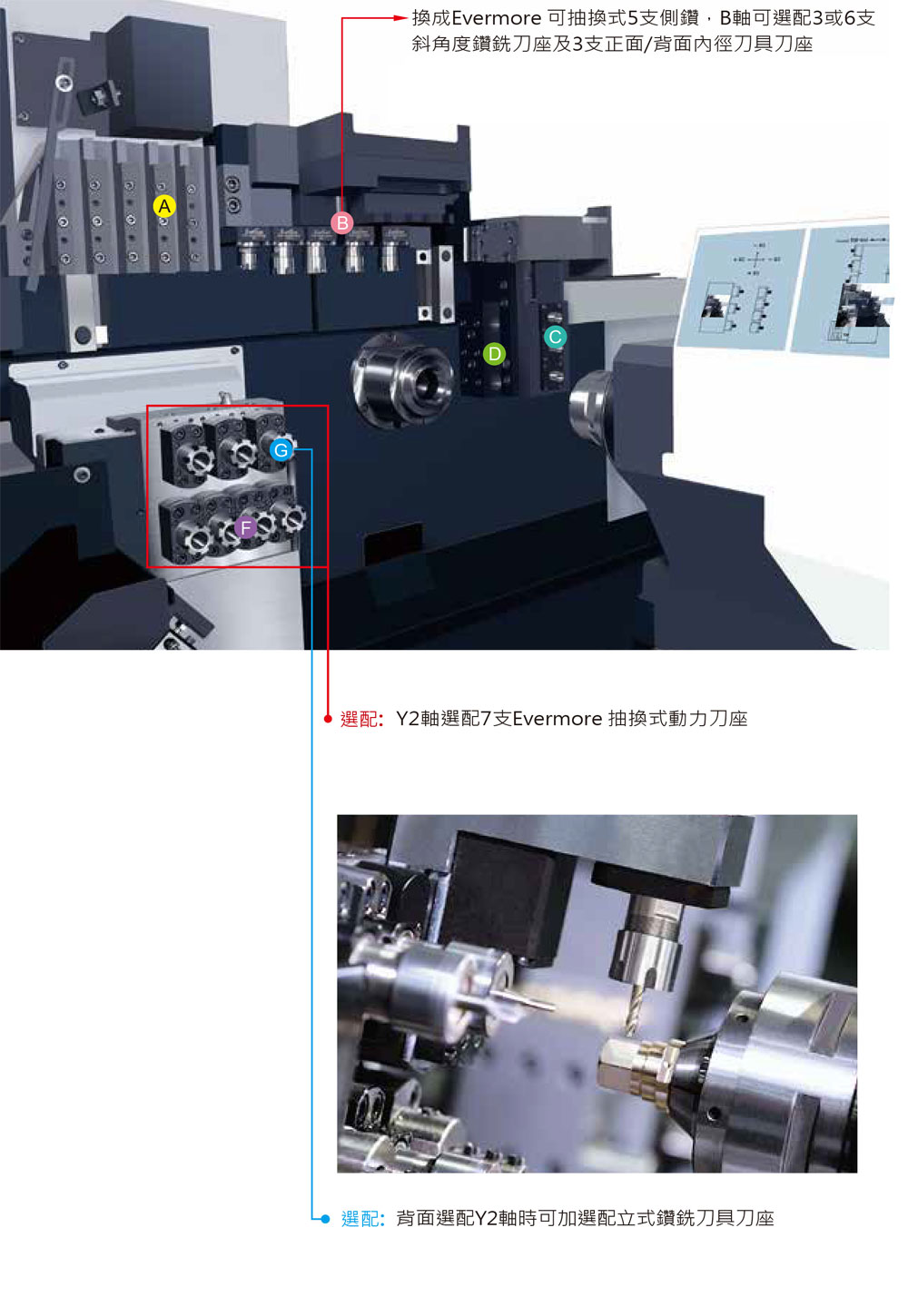

換 成Evermore  可 抽 換 式 5 支 側 鑽 ,B軸 可選配3或6支  斜角度鑽銑刀座及3支正面/背面内徑刀具刀座

Change to Evermore removable 5 pcs cross driven tool holder,   B-axis can be optional with 3 or6 bevel driven tool holder and     3 pcs front /back I.D.stationary tool holder.

選配:Y2軸選配7支Evermore 抽換式動力刀座

Option  :Y2  axis  optional  with  Evermore  removable 7pcs  driven  tool  holder

選配:背面選配Y2軸時可加選配立式鑽銑刀具刀座

Option:   Optional  Radial  drilling  tool   holder  when                 Y2 axis is selected on the sub-spindle

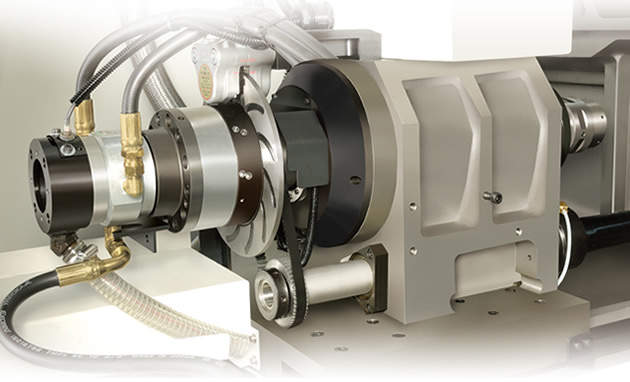

● 主 軸 配 内 藏 式 馬 達 , 標 準 配C軸,   可選配高解析的CS軸。

● Main spindle is equipped withbuilt-in motor,and the

standard is equipped with C axis.A high-analytic CS axis                      is optional.

機械特點

MACHINE    FEATURES:

-   側銑主軸加鑽銑斜角度刀座,方便在工件側面及斜角度做    鑽、跣和攻牙等功能。

-   十字型走向背主軸設計,主軸和背軸可以同時或單獨加工    節省加工時間,提供高度及多様的前後混合加工。

- B軸鑽銑斜角度刀座可360度旋轉方便與主軸和背軸做斜角    度鑽,鉄和攻牙等加工。

●Cross spindle and bevel driven tool holes will help you to do drilling,             milling and tapping on cross side and bevel.

● Cross travel sub-spindle design,the main and sub-spindle can work             either one at a time or simultaneously for reduced machining duration.

● This design bring multi-function front and rear machining.

The B-axis bevel driven tool holder can be rotated 360 degrees to

facilitate bevel drilling,milling and tapping with the main and rear spindle.

2支正面内徑刀具刀座

2 pcs I.D stationary tool holder                              \

2支正面鑽銑刀具刀座

2 pcs Front working driven tool holder

k徑I  ta刀tio     ry tool holder

3支背面鑜銑刀具刀座

3 pcs Back working driven tool holder

正面内径刀具刀座.....2~3支   背面内径刀具刀座.....4支  侧面鑽銑刀具刀座 -----6/5支(配Evermore)
◆Controller :Fanuc 0i-TF PLUS/Fanuc 3li-B(Opt.Y2 axis)
◆Main spindle Caxis orientation ◆Back spindle Caxis orientation ◆Working light ◆Coolant system ◆Part off detective sensor ◆Part catcher	◆Live bushing ◆0.D turning tool holder--------5~7pcs ◆Front I.D stationary tool holder-…-2~3pcs ◆Back I.D stationary tol holde-…-…4pcs ◆Cross working driven tool holder ----------6/5pcs(with Evermore)
選擇附件 OPTION ACCESSORIES: ◆ 控制器：三菱 M80/  三菱 M830(選配Y2軸)      ◆ 排屑機+鐵屑車 ◆正 面 鑽 銑 刀 具 刀 座 . . . . . 2 支 ◆粗料套筒                   斜角 度 鑽 銑 刀 具 刀 座 . . . . . 3 / 6 / 8 支  Y 2軸 ◆ 背面鑽铣刀具刀座------------3/7支(選配Evermore) ◆CS轴(0.0010定位-發那科/0.010定位-三菱---------主軸

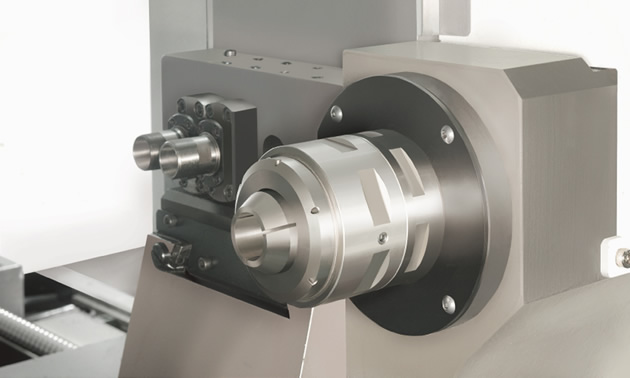

		● 背主轴配伺服馬達,標凖是C軸 。 ● 背主軸旁邊刀座放置2支固定及2支動力鑽,可前進後  退，適合做深孔加工。 ● Sub-spindle is equipped with servo motor,and the standard is C-axis. There are 2 fixed and 2 power drills on the tool holder beside the    sub-spindle,which can move forward and backward.It is suitable   for deep hole processing.
◆Controller:Mitsubishi M80/Mitsubishi M830(Opt.Y2 axis) ◆ Front working driven tool holder-                                                                …2pcs         ◆360°b-axis bevel driven tool holder--                                        … ·3/6/8pcs ◆ Back working driven tool holder----------     …3/7 pcs(Opt.Evermore) ◆CS axis(0.001°orientation-Fanuc/0.01°orientation-Mitsubishi)---Main spindle ◆Chip conveyer+Bucket                                                             ◆Y2 Axis ◆Rough material bushing

● 取消B軸配6支斜角度刀具刀座换配端側一體刀座

Cancel the 6  pcs  B-axis  bevel driven tool  holder and

replace a off-center driven tool holder

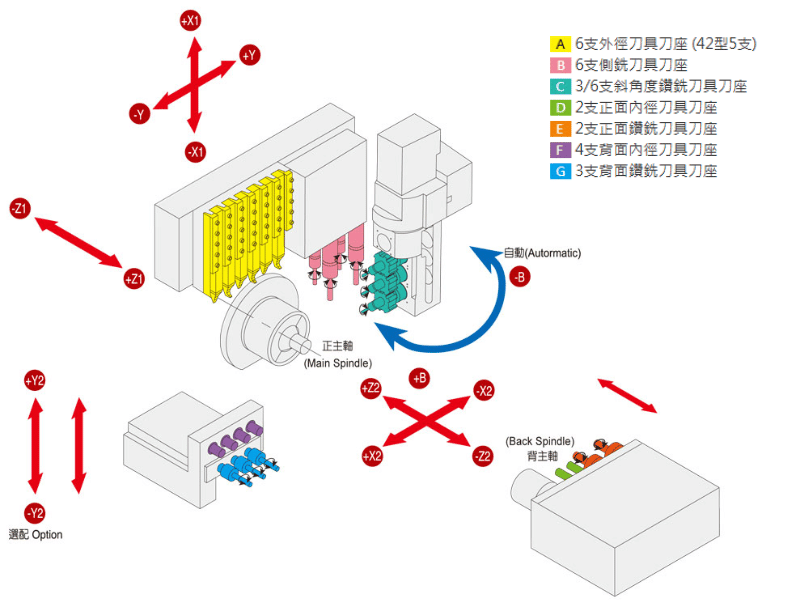

7 pcs O.D turning tool holder (CSL-42 IV 6pcs)     7支外徑刀具刀座(42型6支)

6 pcs cross working deiven tool holder                       6支側銑刀具刀座

6 pcs 360°B axis bevel driven tool holder             6支斜角度鑽鉄刀具刀座

3 pcs I.D stationary tool holder(CSL-42 IV 2 pcs) 3支正面内径刀具刀座(42型2支)

2 pcs front off-center driven tool holder                     2支正面鑽銑刀具刀座

4 pcs back I.D stationary tool holder                      4支背面内径刀具刀座

3 pcs back off-center driven tool holder                    3支背面鑽銑刀具刀座
